16.1.2 Server rear
16.1.2.1 Server rear with air cooling

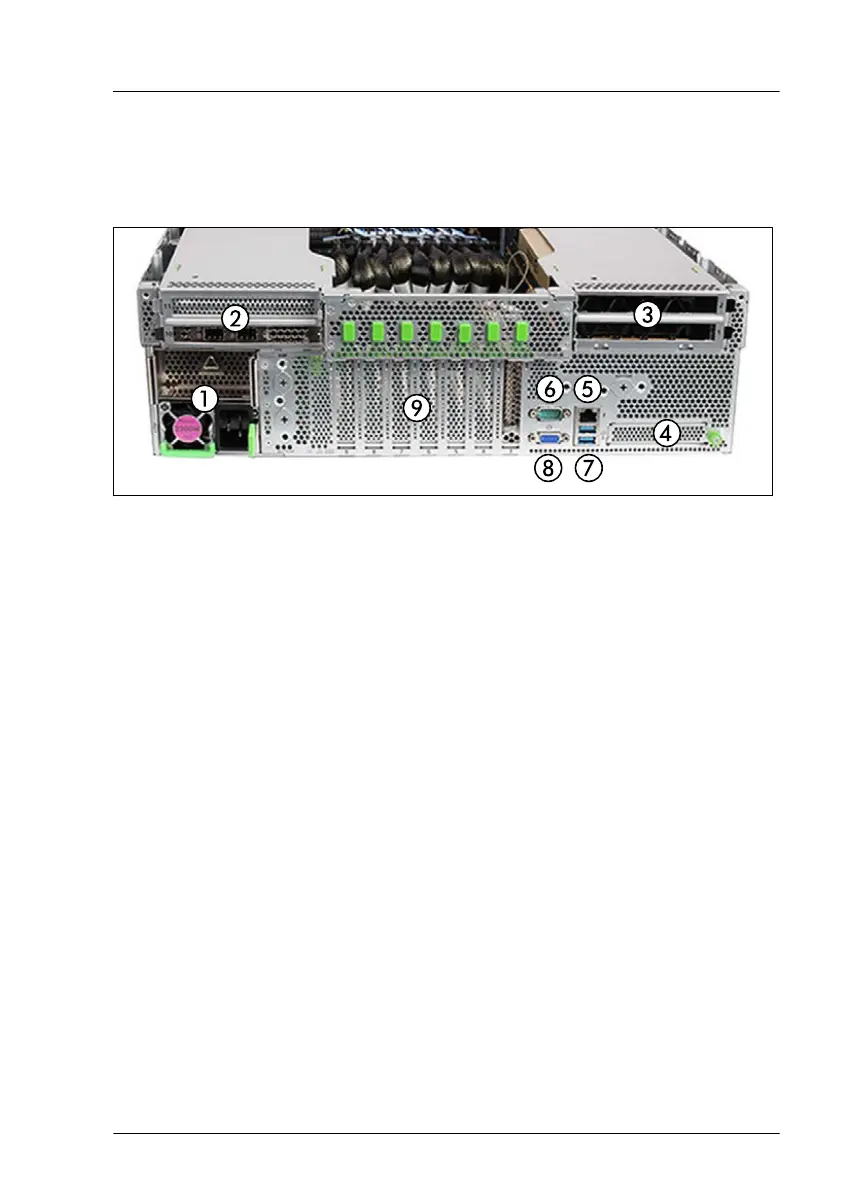

Figure 237: Server rear with air cooling
1 Up to two PSUs / dummy cover
2
PCIe slot 10 and PCIe slot 1
1 / riser
module
3 PCIe slot 1 and PCIe slot 2 / riser
module
4 OCP module
5 Management LAN
6 Serial connector
7 USB 3.0 (2x)
8 VGA
9 PCIe slot 3 - PCIe slot 9
The OCP module (4) is an option (not valid for Japan). If no OCP module has
been ordered, you find a dummy cover installed in this place (4).
Appendix A
RX4770 M6 Upgrade and Maintenance Manual 389
