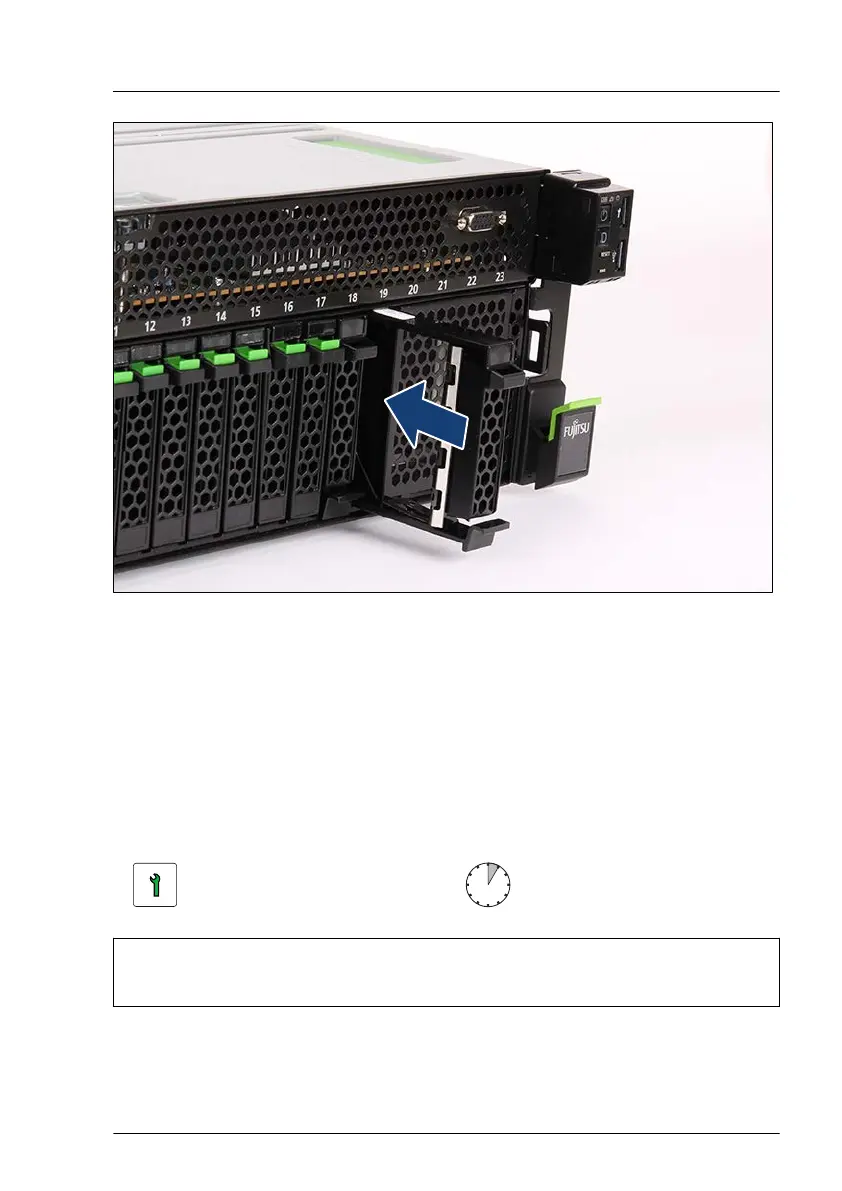

Figure 61: Installing the 2.5-inch dummy module
▶
Push the dummy module into the empty bay until it engages.
Concluding steps
▶
If applicable, "Installing the front cover with lock" on page
61
.
7.4.4 Replacing a 2.5-inch HDD/SSD module
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: – Installation frame included: tool-less
– Installation frame excluded: Phillips PH1 / (+) No. 1 screw driver
Hard disk drive (HDD) / solid state disk (SSD)
RX4770 M6 Upgrade and Maintenance Manual 147
