9.8.2 Removing a GPU card from a riser module
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Preliminary steps
▶
"Suspending BitLocker functionality" on page 81
.
▶
If applicable,"Removing the front cover with lock" on page 45.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 48.
▶
Remove the corresponding riser module, see "Removing a riser module" on
page 63.
Removing a GPU card
▶
Disconnect the GPU PWR cable from the bottom system board.
▶
Remove the GPU air duct.

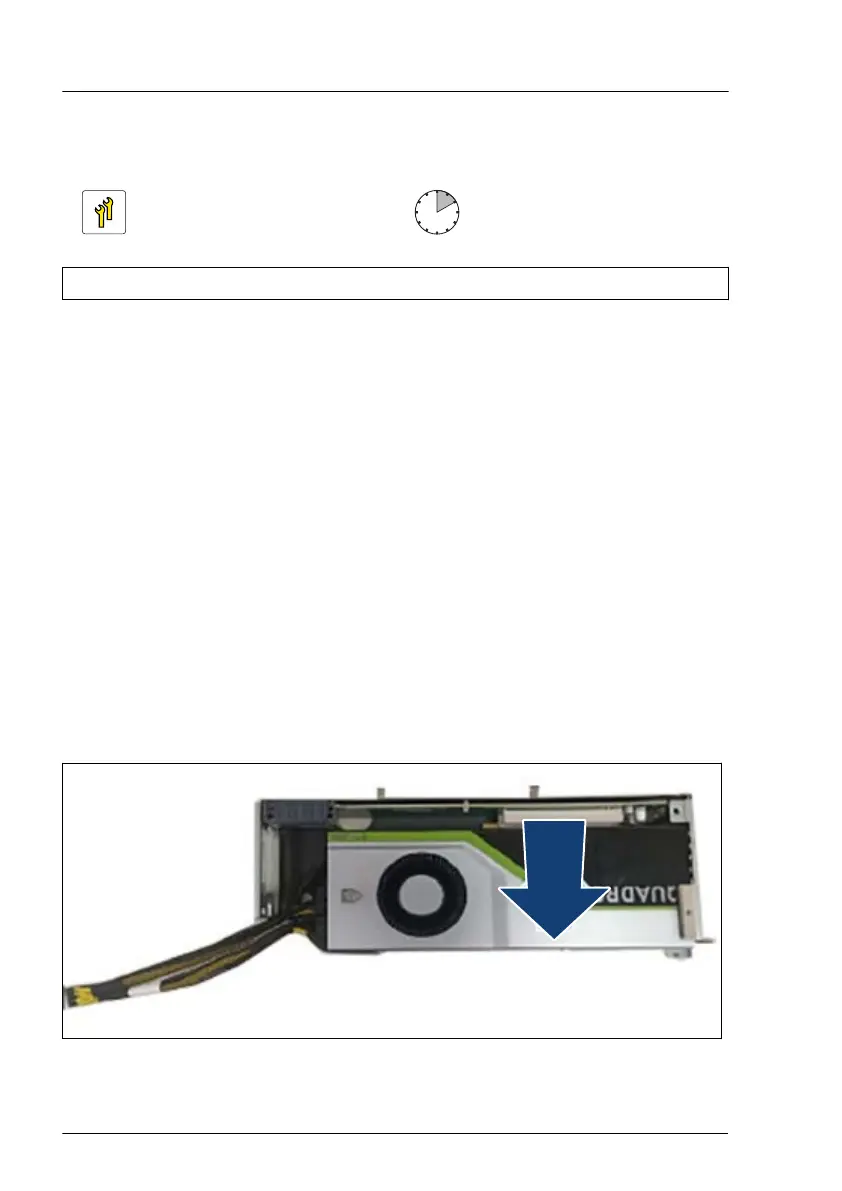

Figure 127: Removing the GPU from the riser module
