Connect the GPU PWR cable to the bottom system board.

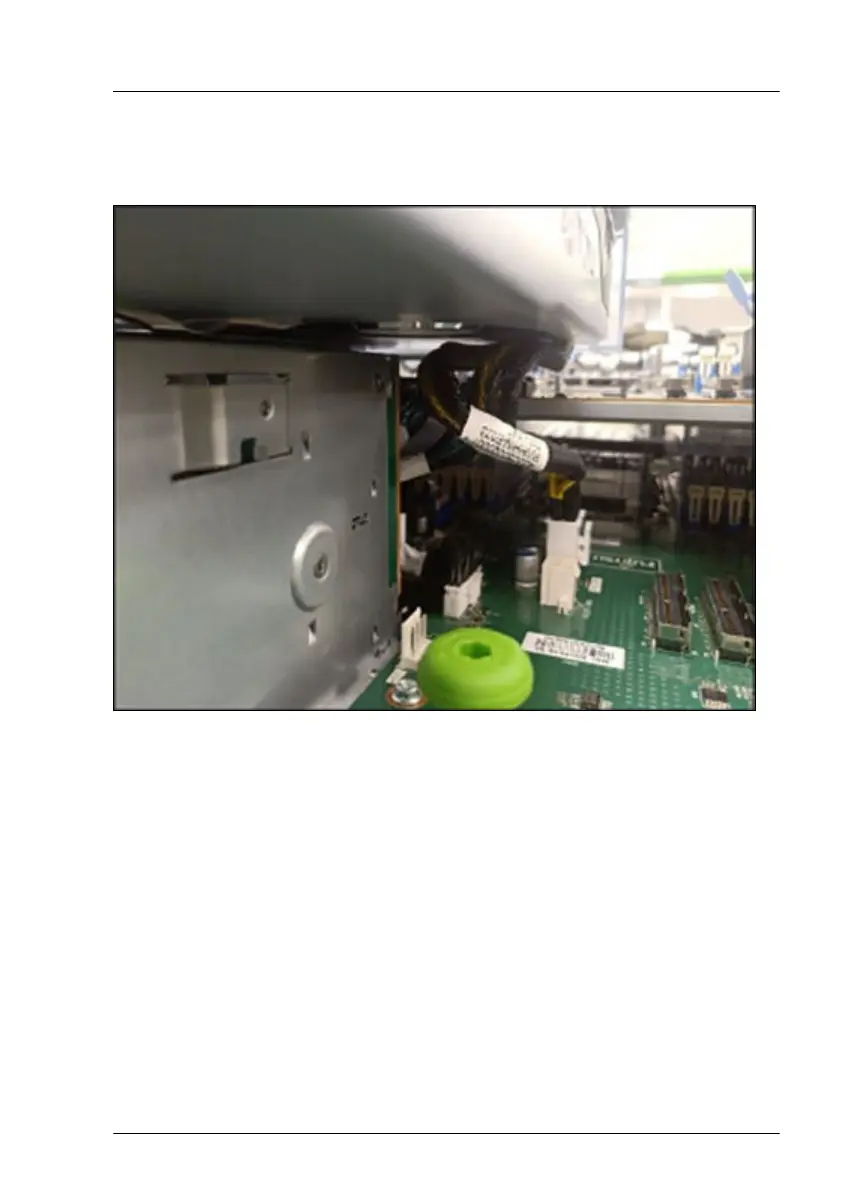

Notice the routing of the GPU PWR cable:
Concluding steps
▶
Install the corresponding riser module, see "Installing a riser module" on
page
63
.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 59.
▶
"Switching on the server" on page 60.
▶
If applicable,"Installing the front cover with lock" on page 61.
▶
If applicable, "Updating expansion card firmware" on page 89.
▶
"Resuming BitLocker functionality" on page 104.
Expansion cards and backup units
RX4770 M6 Upgrade and Maintenance Manual 221
