16.1.3
Server interior
16.1.3.1
Servers with air cooling

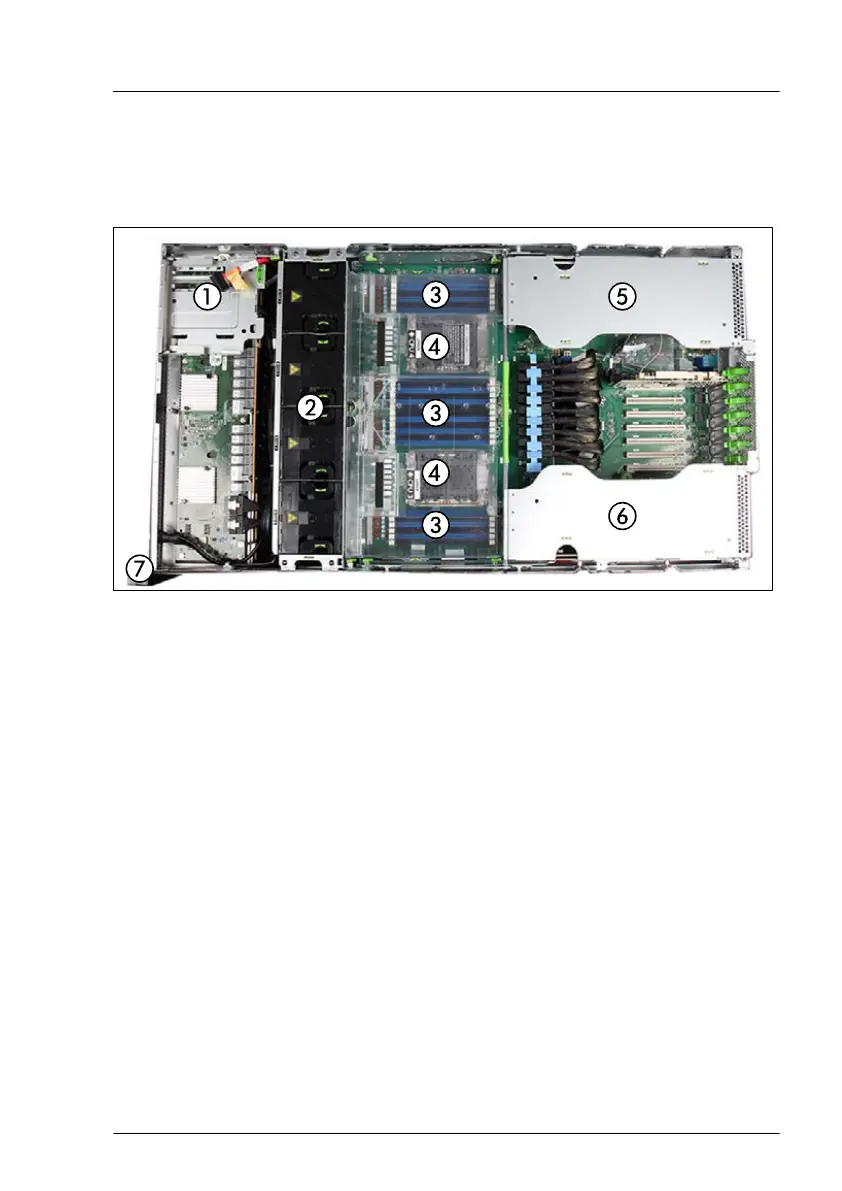

Figure 239: Server interior (top system board)
1
ODD / dummy cover
2
Fan modules
3
Main memory
4
CPUs (2x)
5
Riser module slot 1 / slot 2
6
Riser module slot 10 / slot 1
1
7
Common operation panel
The ODD (1), the main memory (3) and the two CPUs (4) are options.
