Installing the front cover with lock

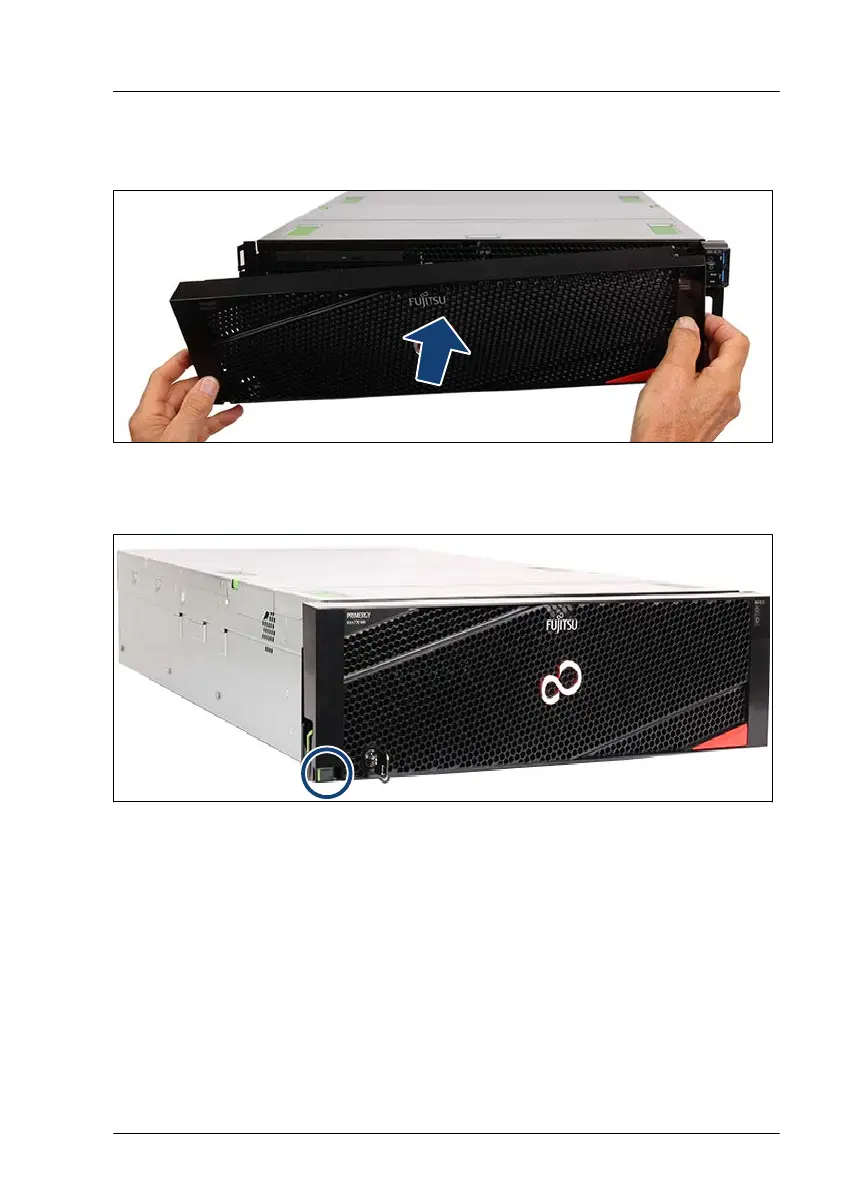

Figure 16: Installing the front cover
â–¶
Attach the front cover in a slight angle to the front.
Figure 17: Aligning the front cover
â–¶
Align the front cover to the front. The lock on the left side must be pushed in
(see circle).
Basic hardware procedures
RX4770 M6
Upgrade and Maintenance Manual
61
60
62
