Installing the air duct
Installing the air duct 1 (top system board)

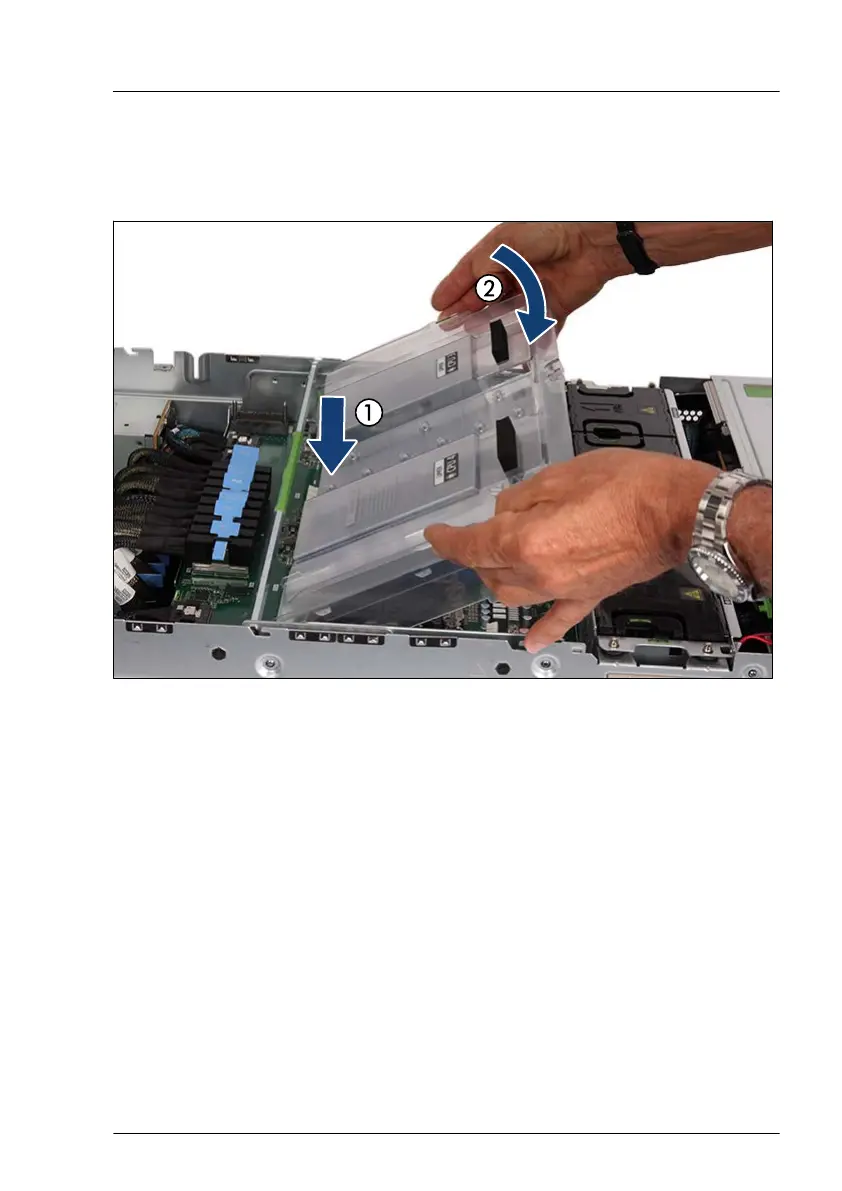

Figure 30: Installing the air duct 1
â–¶
Place the air duct in a slight angle on the top system board (1).
â–¶
Fold the air duct down (2).
Basic hardware procedures
RX4770 M6
Upgrade and Maintenance Manual
71
