Fujitsu PRIMERGY RX4770 M6 - DDR4 DIMM and Optane Pmem Modules

Mirroring mode
–

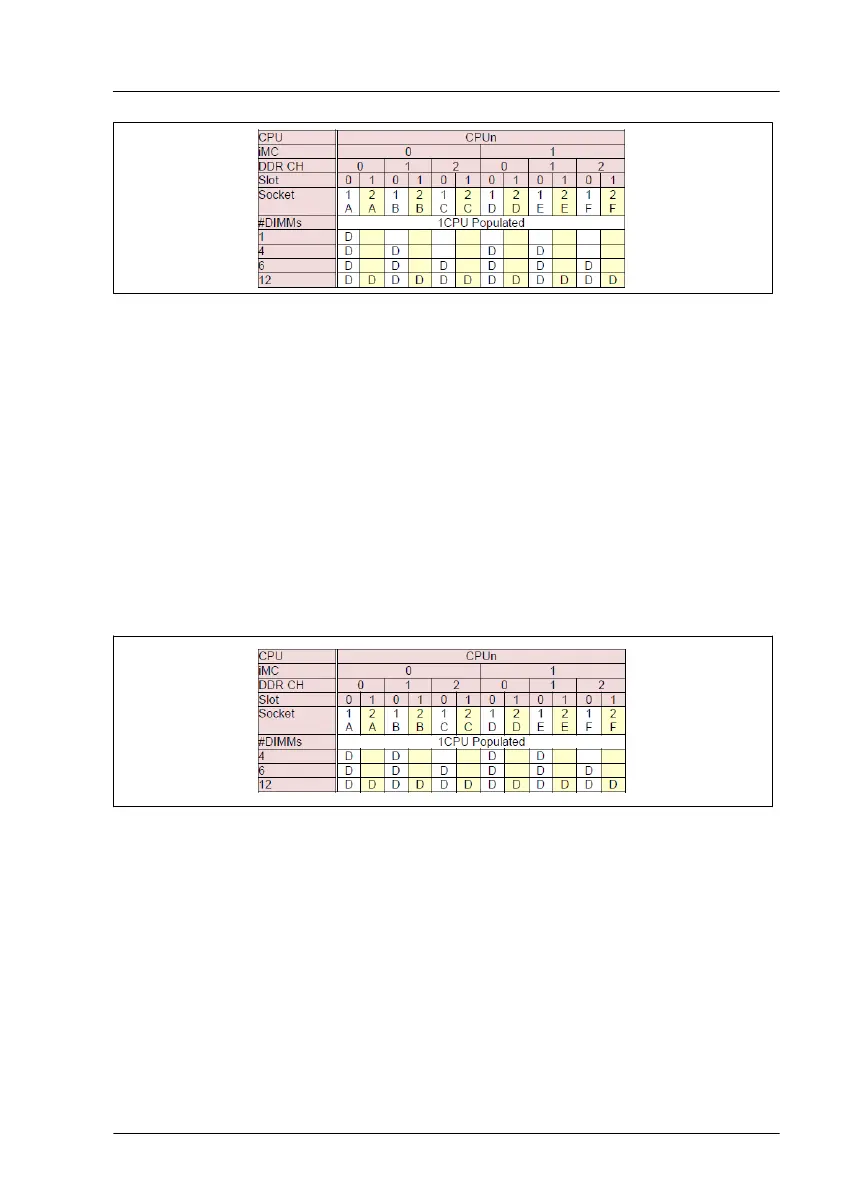

Mirroring mode requires 4, 6 or 12 memory modules per CPU.
–
The DIMM population will exactly be identical for the mirrored channels.
–
As a result of the mirroring, the total physical memory available to the
system is half of what is populated.
–
Mirroring Mode must be populated identically with regards to size and
organization.
–
DIMM slot populations within a channel do not have to be identical, but the
same DIMM slot location across mirroring channel.
10.2.3.2 DDR4 DIMM and Optane PMem modules
–
Optane PMem module population is limited to several patterns.
–
The same DDR4 DIMM type and capacity are used for each DDR4 and
Optane PMem population.
–
For App Direct (AD) mode, DDR4 DIMM/Optane PMem module capacity
ratio must be between 1:1, 1:2 and 1:4.
–
For App Direct (AD) mode, Optane PMem modules must be populated
symmetrically across sockets.
