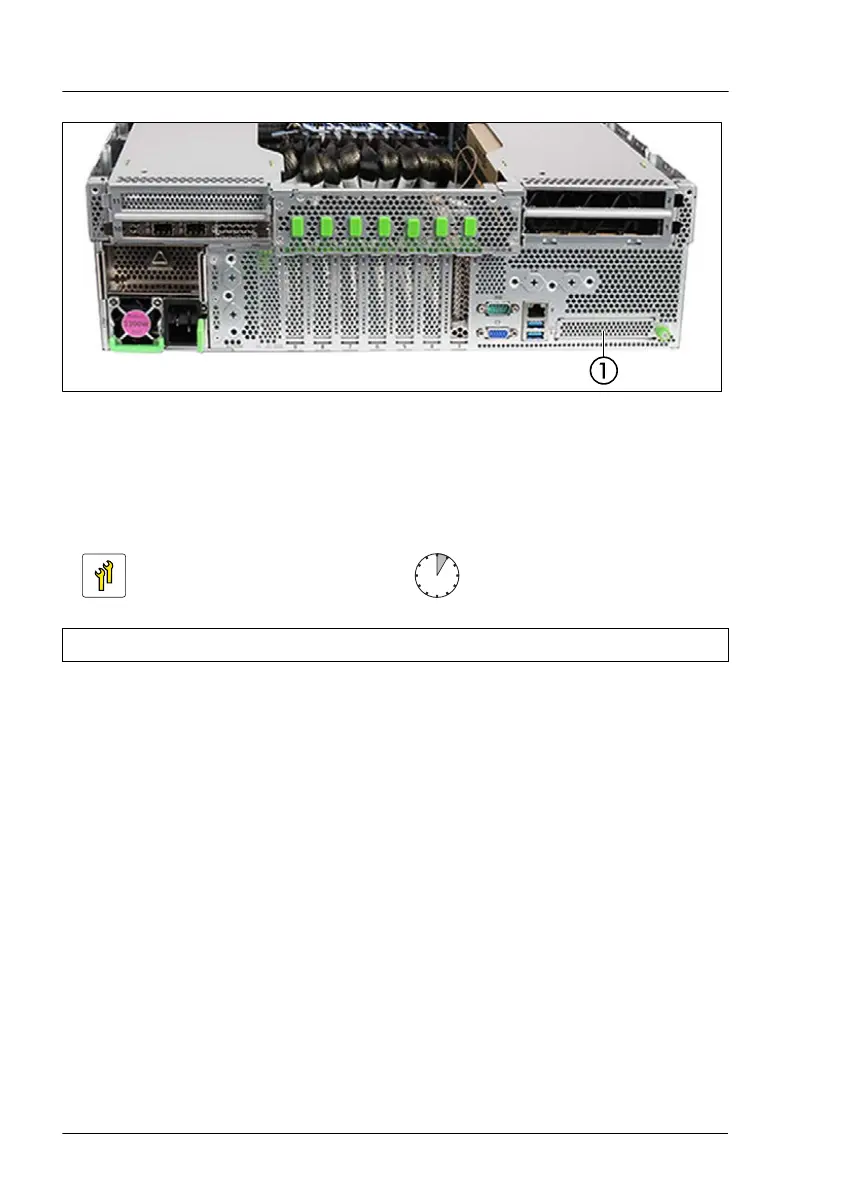

Figure 94: Position of the OCP module at the rear side
1
OCP module
9.5.2
Installing an OCP module
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
T
ools:
tool-less
Preliminary steps
â–¶
"Shutting down the server" on page 46
.
â–¶
"Disconnecting the power cord" on page 47
.
Expansion cards and backup units
188
Upgrade and Maintenance Manual
RX4770 M6
187
189
