Removing the OCP dummy cover

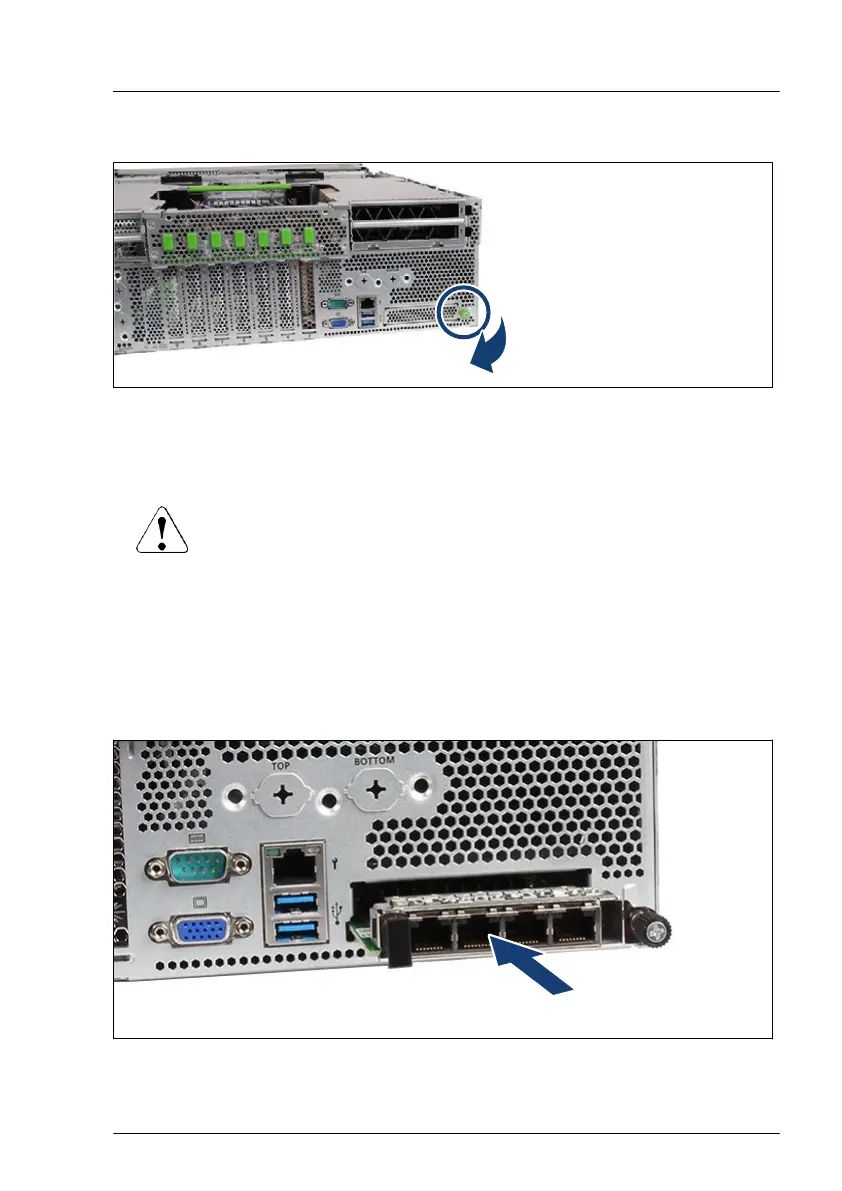

Figure 95: Removing the OCP dummy cover
▶
Loosen the knurled screw (see circle).
▶
Remove the OCP dummy cover
.
CAUTION
▶
Keep the dummy cover for future use.
▶
If you remove an OCP module and do not immediately replace it
with a new one, a dummy cover must be reinstalled in the bay to
comply with applicable EMC regulations and satisfy cooling
requirements.
Installing the OCP module
Figure 96: Installing the OCP module (A)
Expansion cards and backup units
RX4770 M6 Upgrade and Maintenance Manual 189
