9.7 Expansion cards in riser modules
9.7.1 Installing an expansion card in a riser module
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Preliminary steps
▶
"Suspending BitLocker functionality" on page 81
.
▶
If applicable,"Removing the front cover with lock" on page 45.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 48.
▶
Remove the corresponding riser module, see "Removing a riser module" on
page 63.
Installing an expansion card in a riser module

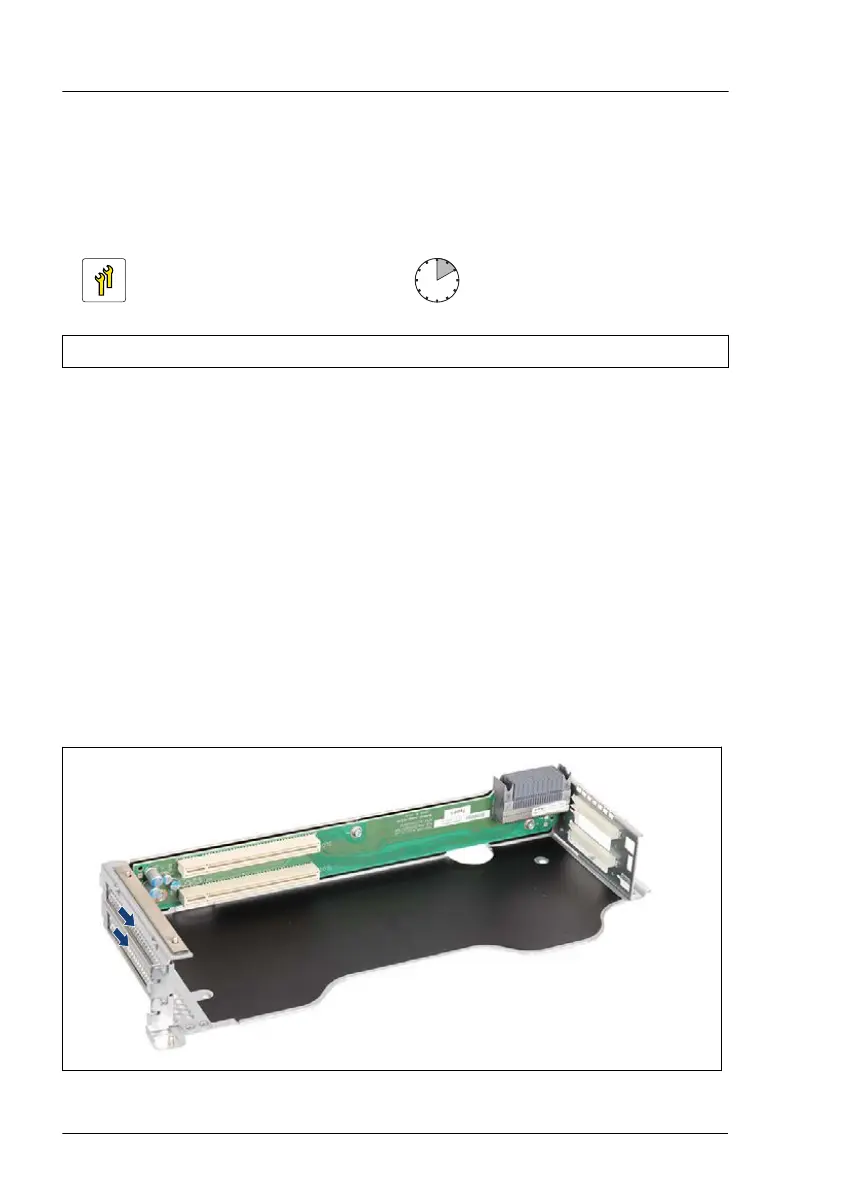

Figure 112: Removing the slot cover - example riser module left
Expansion cards and backup units
