Insert the PCIe holder into the flange of the rear wall (1) and rotate it
down (2).

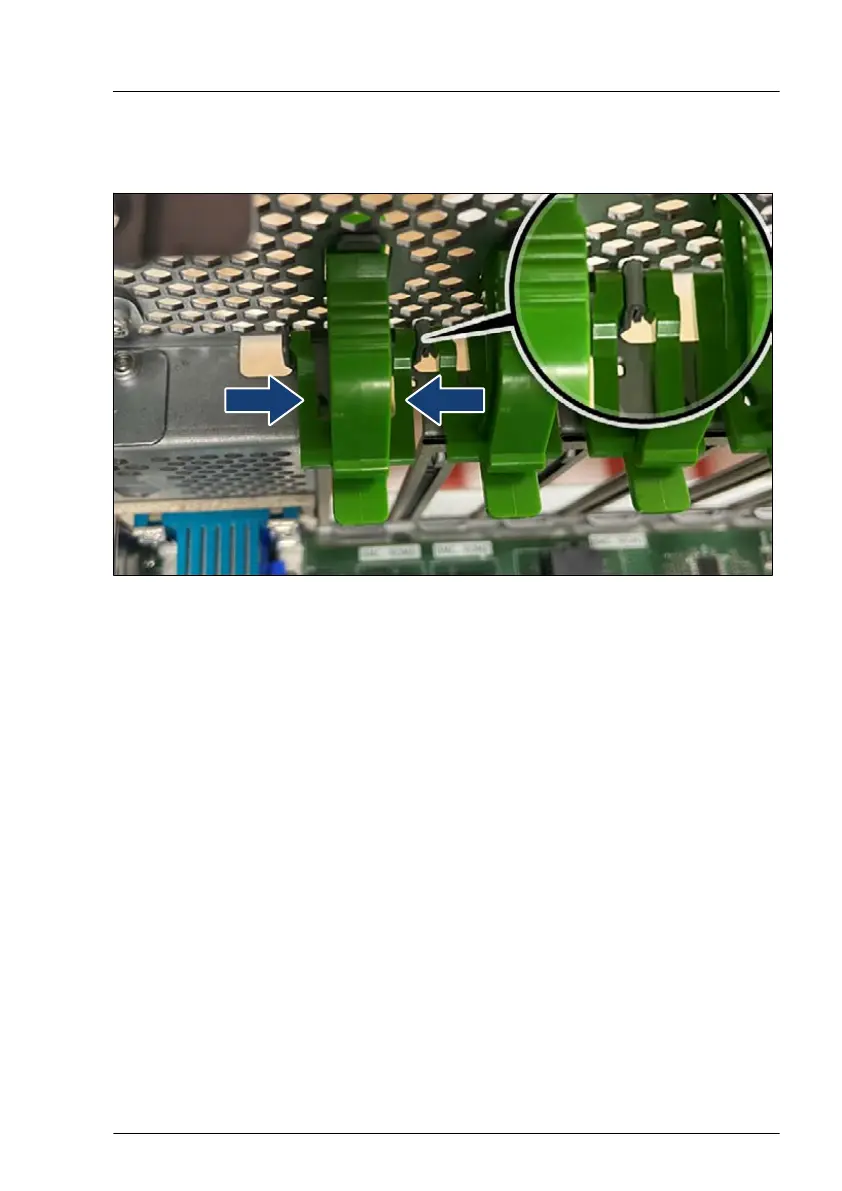

Figure 111: Installing the PCIe holder (B)
▶
Press the flexible arm at both sides of PCIe holder and assembly the align
pin into the align hole of rear wall (see close-up).
Concluding steps
▶
If applicable, "Installing a riser module" on page
63
.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 59.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
Expansion cards and backup units
RX4770 M6 Upgrade and Maintenance Manual 207
