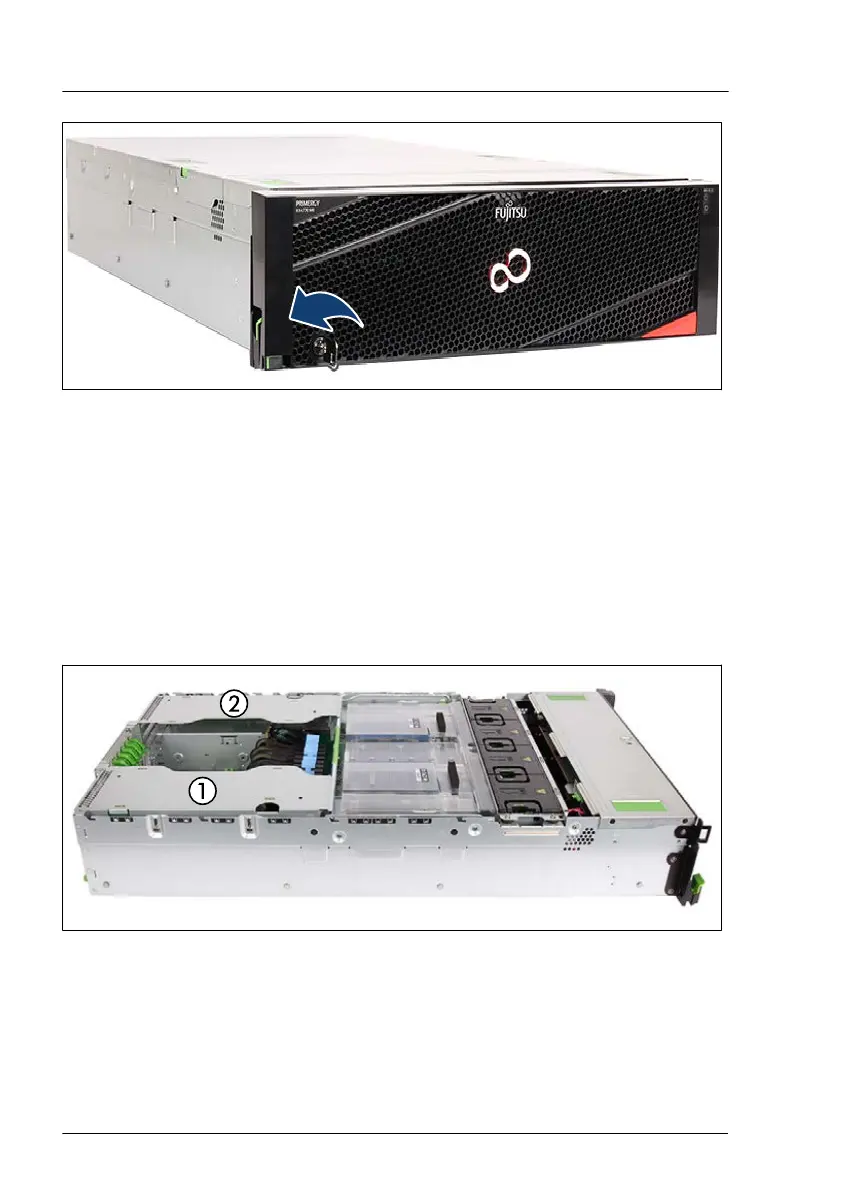

Figure 18: T
urning the key
â–¶
Insert the key
.
â–¶
T
urn the key in locked position.
4.10
Handling riser modules
4.10.1
Positions of riser modules
Figure 19: Positions of riser modules
1
Riser module offers PCIe slot 1 and
PCIe slot 2
2
Riser module offers PCIe slot 10 and
PCIe slot 1
1
Basic hardware procedures
62
Upgrade and Maintenance Manual
RX4770 M6
61
63
