Remove the slot cover of the desired PCIe slot.
CAUTION
▶
Keep the slot cover for future use.
▶
If the expansion card is removed and not replaced with a new
one, the slot cover must be reinstalled due to cooling, to comply
with applicable EMC regulations and to protect against fire.

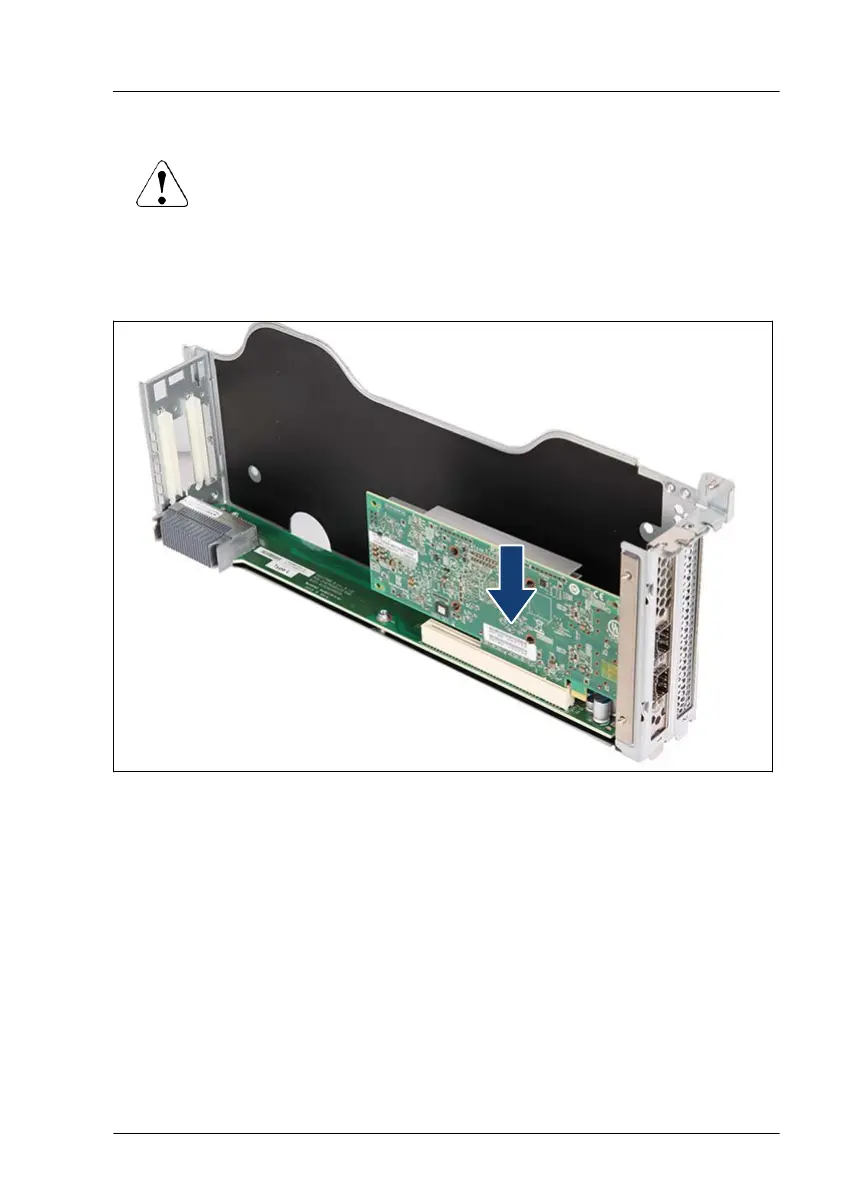

Figure 113: Installing the expansion card - example riser module left
▶
Carefully insert the expansion card into the PCIe slot and press down firmly
until it is fully seated in the slot.
Concluding steps
▶
Install the corresponding riser module, see "Installing a riser module" on
page
63
.
▶
"Reassembling" on page 53.
▶
Connect all external cables to the expansion card(s).
▶
"Connecting the power cord" on page 59.
Expansion cards and backup units
RX4770 M6 Upgrade and Maintenance Manual 209
