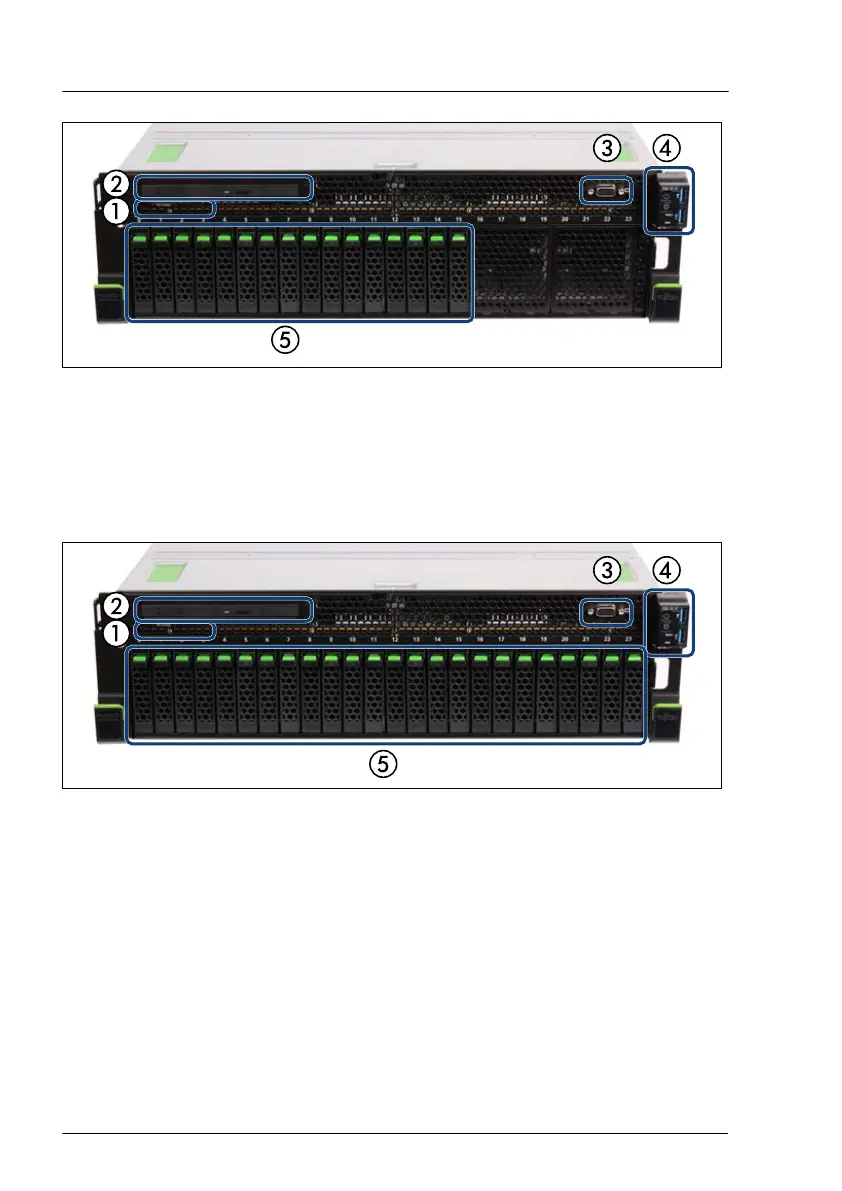

Figure 235: Server front with 16x 2.5-inch HDDs/SSDs or 16x 2.5-inch PCIe SSDs
1 ID card
2
ODD
3
Front VGA
4 Common operation panel
5 2.5-inch HDD/SSDs/PCIe SSDs (16x)
The ODD (2) is an option.
Figure 236: Server front with 24x 2.5-inch HDDs/SSDs or 24x 2.5-inch PCIe SSDs
1 ID card
2 ODD
3
Front VGA
4 Common operation panel
5 2.5-inch HDD/SSDs/PCIe SSDs (24x)
The ODD (2) is an option.
