Installing a 2.5-inch HDD/SSD in a 2.5-inch installation frame

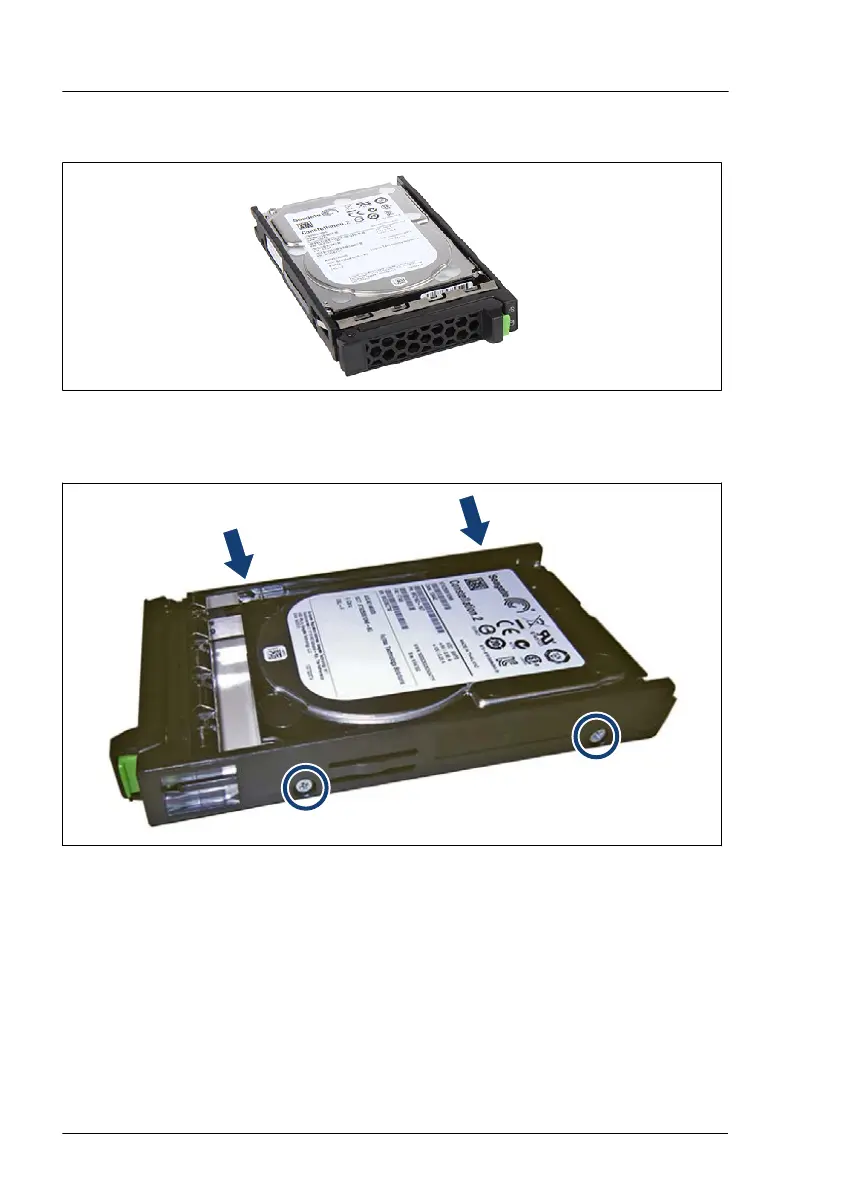

Figure 53: Installing the 2.5-inch HDD/SSD in the 2.5-inch installation frame (A)
▶
Lay the 2.5-inch HDD/SSD into the 2.5-inch installation frame as shown.
Figure 54: Installing the 2.5-inch HDD/SSD in the 2.5-inch installation frame (B)
▶
Fasten the 2.5-inch HDD/SSD with four screws.
Removing a 2.5-inch HDD/SSD from a 2.5-inch installation frame
▶
Please proceed in reversed order
.
