Removing a 2.5-inch HDD/SSD dummy module

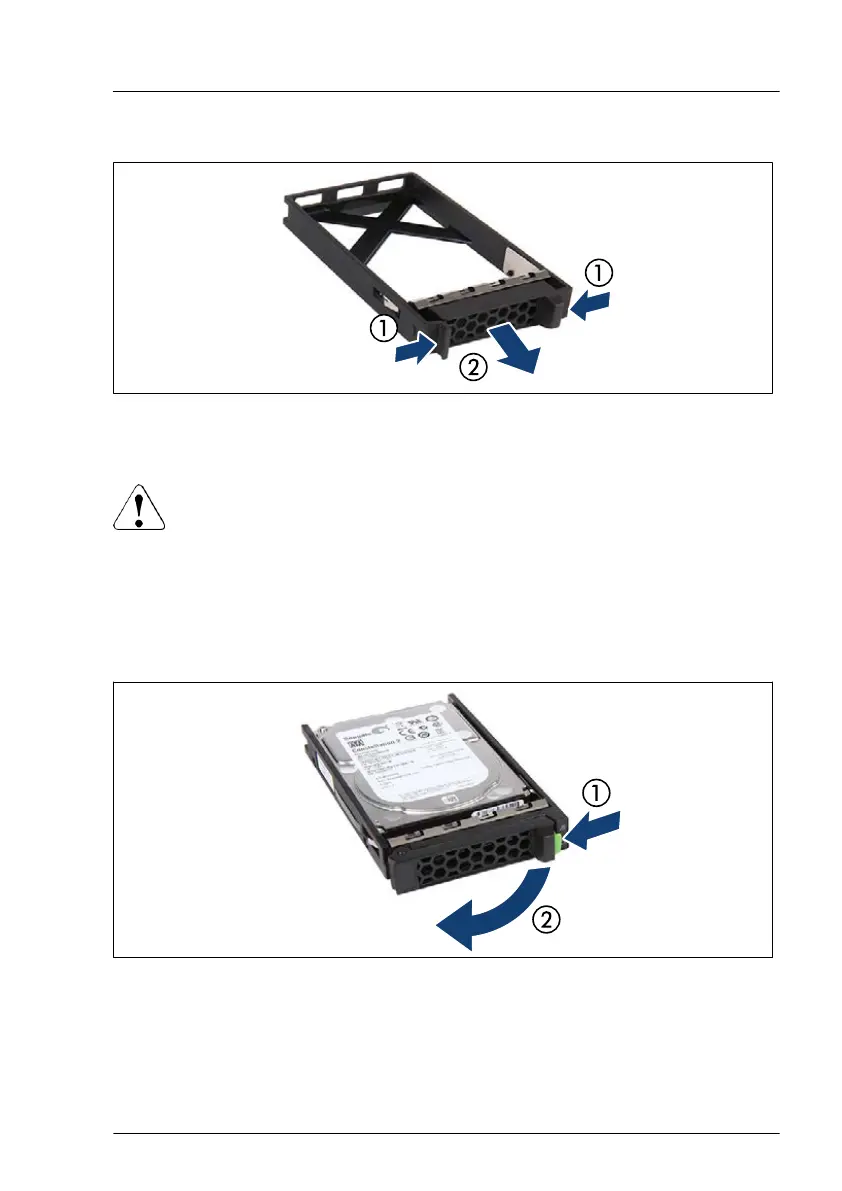

Figure 58: Removing a 2.5-inch HDD/SSD dummy module
â–¶
Press both tabs together (1) and pull the dummy module out of its bay
(2).
CAUTION
â–¶
Keep the dummy module for future use.
â–¶
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Installing a 2.5-inch HDD/SSD module
Figure 59: Opening the locking lever
â–¶
Pinch the green locking clips (1) and open the locking lever (2).
Hard disk drive (HDD) / solid state disk (SSD)
RX4770 M6 Upgrade and Maintenance Manual 143
