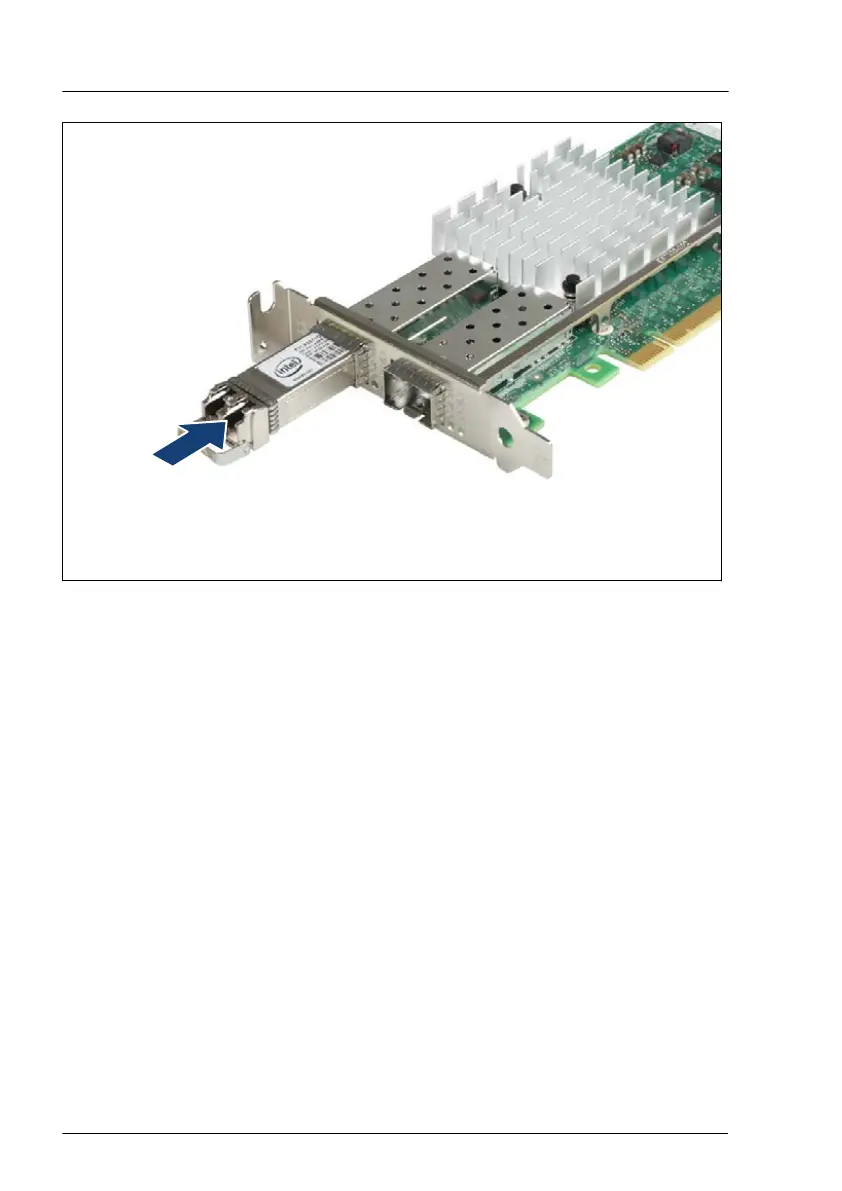

Figure 86: Inserting the SFP+ transceiver module
▶
Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
