Preliminary steps
â–¶
"Shutting down the server" on page 46
.
â–¶
"Disconnecting the power cord" on page 47
.
Removing the OCP module

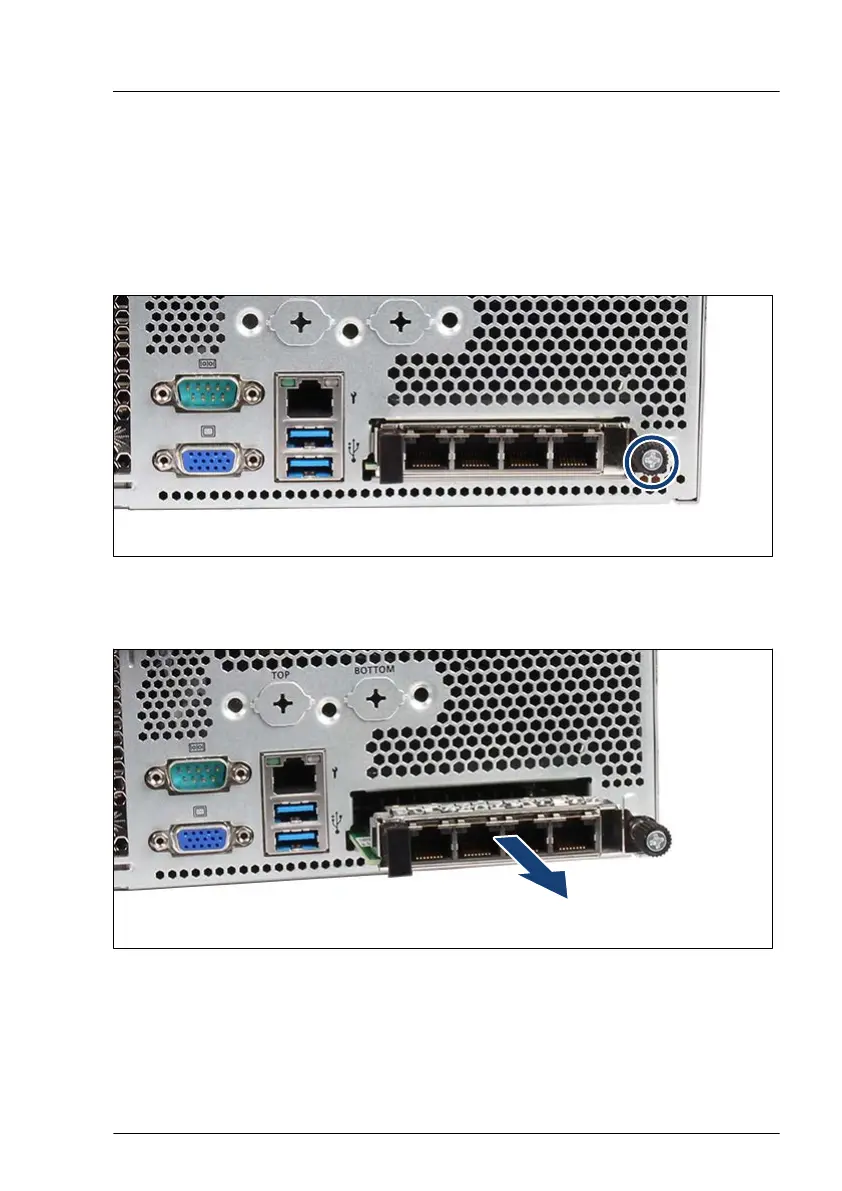

Figure 98: Loosening the knurled screw
â–¶
Loosen the knurled screw (see circle).
Figure 99: Removing the OCP module
â–¶
Remove the OCP module.
Expansion cards and backup units
RX4770 M6
Upgrade and Maintenance Manual
191
190
192
