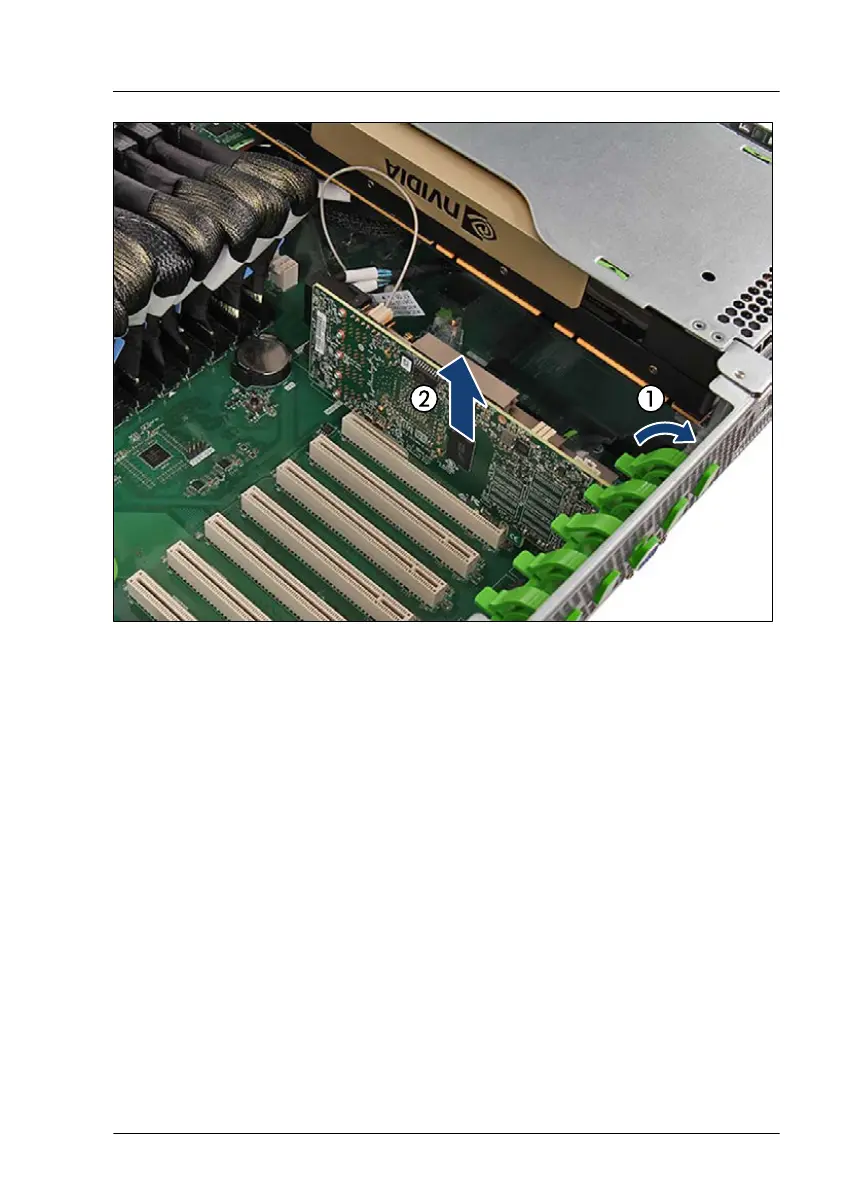

Figure 106: Removing the expansion card - example EP520i RAID controller
▶
Pull down the latch (1).
▶
Remove the expansion card from the PCIe slot (2).
