Removing the FBU holder

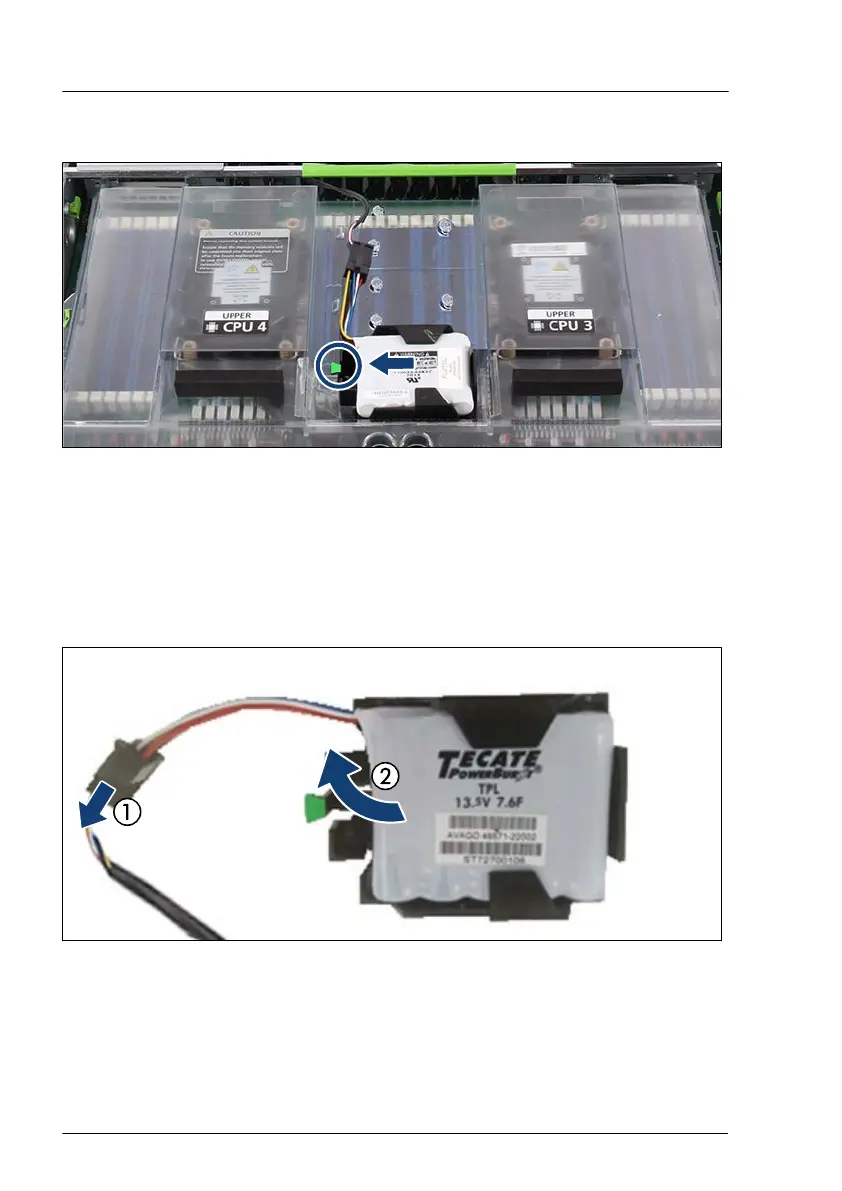

Figure 135: Removing the FBU holder
▶
Lift up the green locking handle on the holder (see circle) while sliding the
holder in direction of the arrow as far as it will go.
▶
Remove the FBU holder from the system air duct 1.
Removing the FBU
Figure 136: Removing the FBU from the holder
▶
Disconnect the FBU adapter cable (1).
▶
Remove the FBU from the holder (2).
