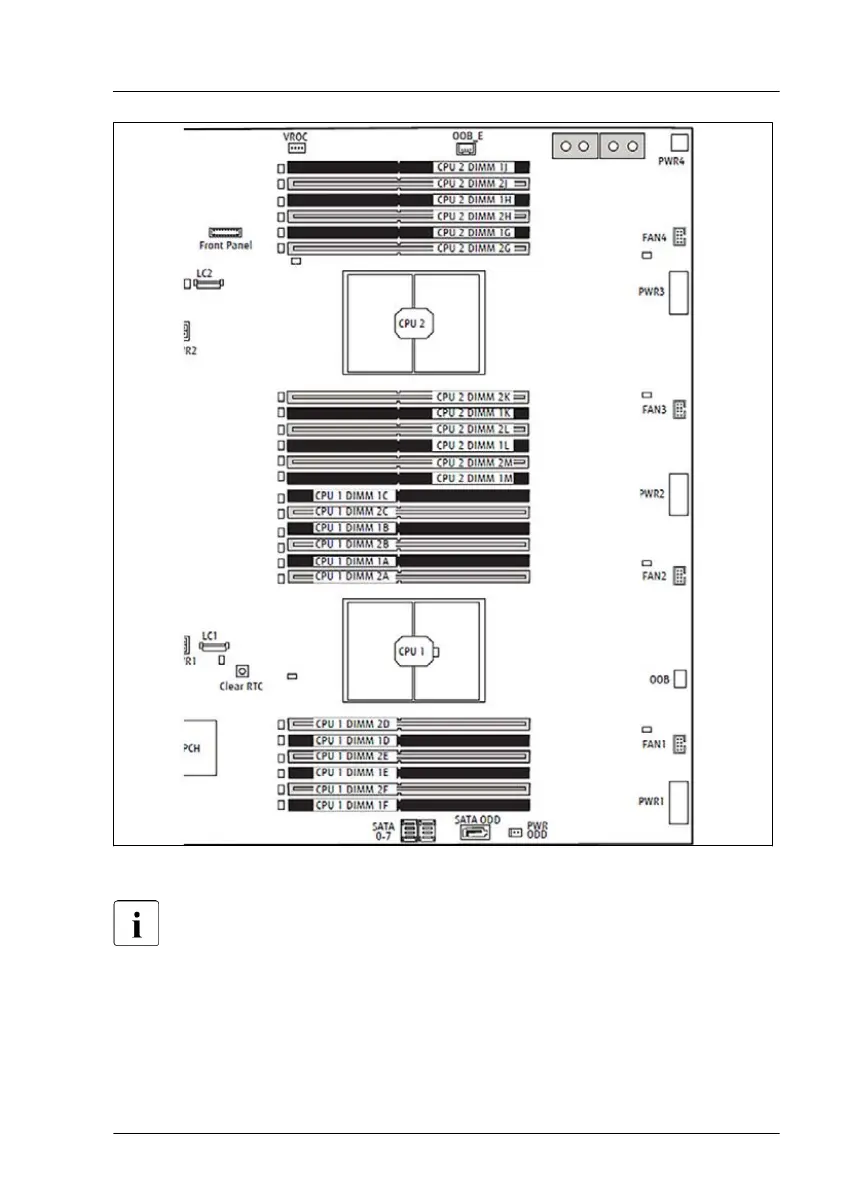

Figure 138: Slots of the main memory on bottom system board
The notation of the memory channels and DIMM sockets correspond to
the silk print on system board.
–
The two system boards are equipped with 48 memory DIMM sockets R3 (12
sockets per CPU).
–
Six channel DIMM memory architecture (per CPU), 2 DIMMs per channel
–
In a 2 CPU configuration only 24 memory slots are usable.
Main memory
RX4770 M6 Upgrade and Maintenance Manual 237
