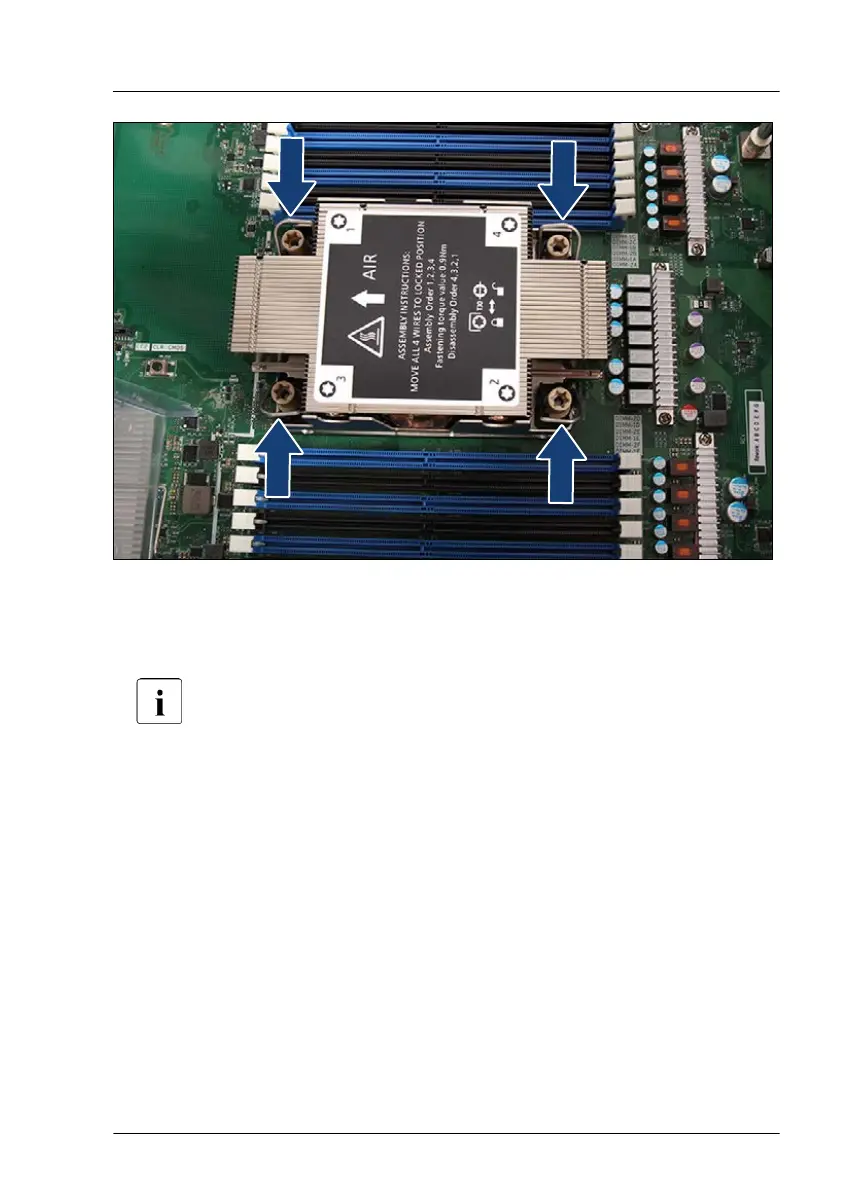

Figure 155: Installing the heat sink (A)
▶
Push the four latches inward.
▶
Carefully place the heat sink onto the CPU socket.
Take care of the air flow direction.
Processor (CPU)
RX4770 M6 Upgrade and Maintenance Manual 265
