â–¶
"Disconnecting the power cord" on page 47
.
â–¶
"Getting access to the component" on page 48.
Removing the ODD dummy cover

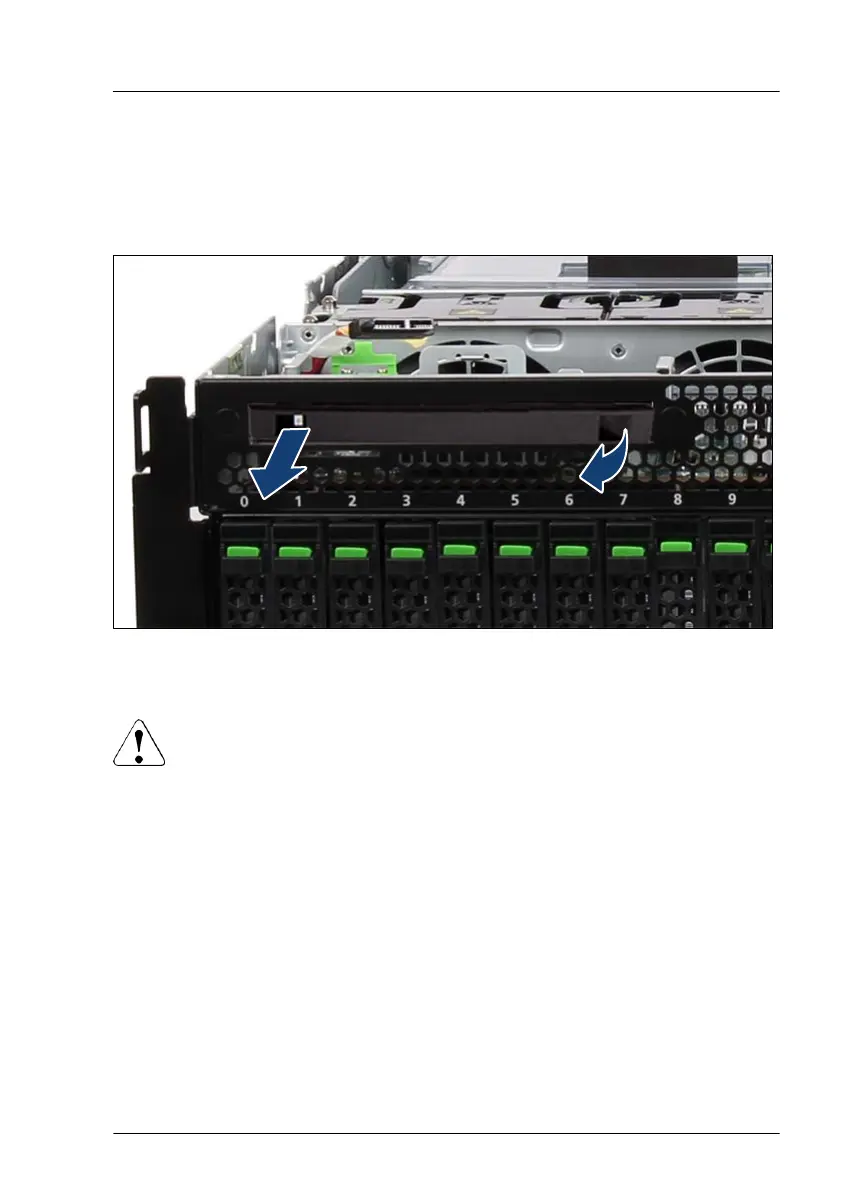

Figure 186: Removing the ODD dummy cover
â–¶
Pull the ODD dummy cover out of the bay.
CAUTION
â–¶
Keep the dummy cover for future use.
â–¶
If you remove the accessible drive again and do not replace it with
a new one, the dummy cover must be reinstalled to comply with
EMC regulations and to satisfy cooling requirements and fire
protection measures.
Installing the ODD
â–¶
If no ODD has been installed before, remove the two screws and take the
ODD latch from the fan bridge, see Figure 185.
Accessible drives
RX4770 M6 Upgrade and Maintenance Manual 303
