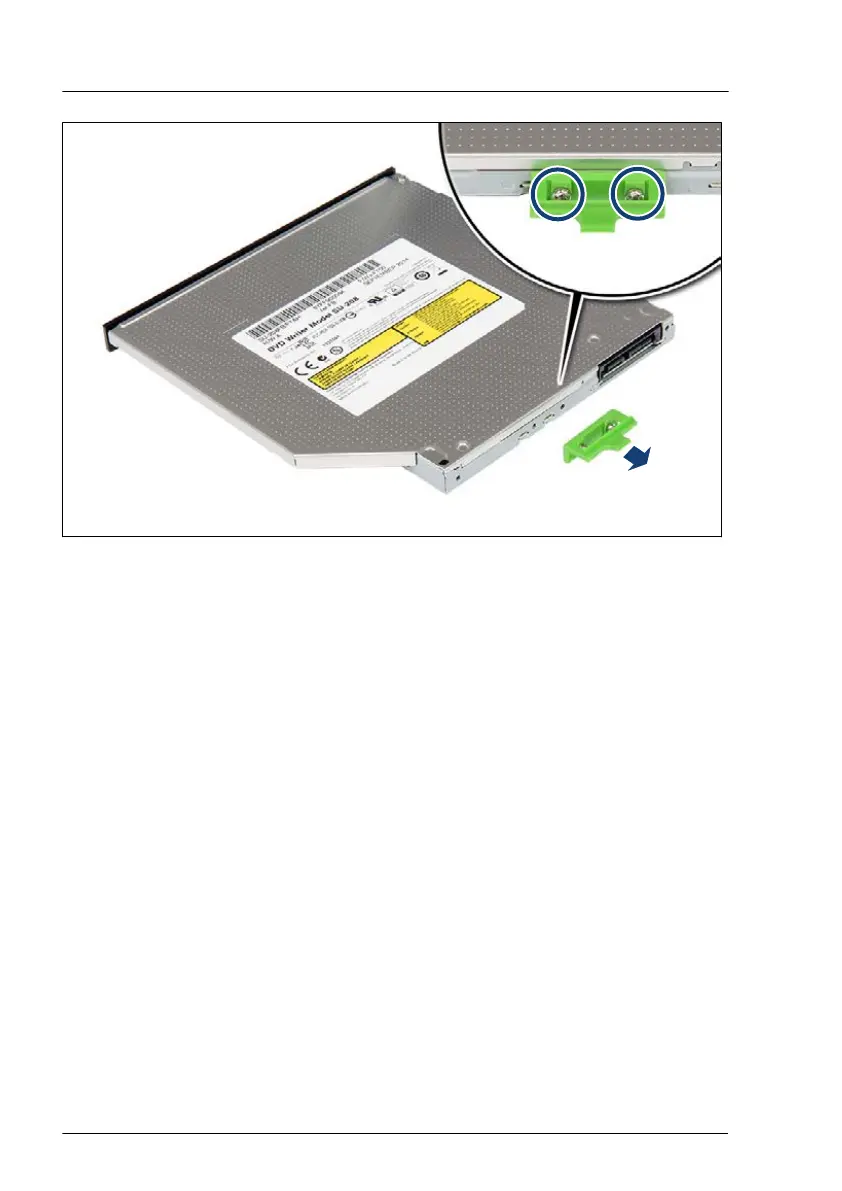

Figure 192: Removing the ODD latch from the ODD
▶
Remove the two screws (see circles).
▶
Remove the ODD latch.
▶
If no new ODD will be installed, fasten the ODD latch with two screws to the
bottom plate of the ODD bay
, see
"Storing the ODD latch" on page 302.
Accessible drives
310 Upgrade and Maintenance Manual RX4770 M6
