"Disconnecting the power cord" on page 47
.
▶
"Getting access to the component" on page 48.
▶
"Removing the fan cage" on page 64.
▶
Remove the riser module for PCIe slot 10 and PCIe slot 11, see "Removing
a riser module" on page 63.
▶
"Removing the air duct 1 (top system board)" on page 68.
▶
"Removing the top system board carrier" on page 73.
▶
"Removing the air duct 2 (bottom system board)" on page 69.
Removing the COP
The COP and the front panel cable are combined in one spare part.

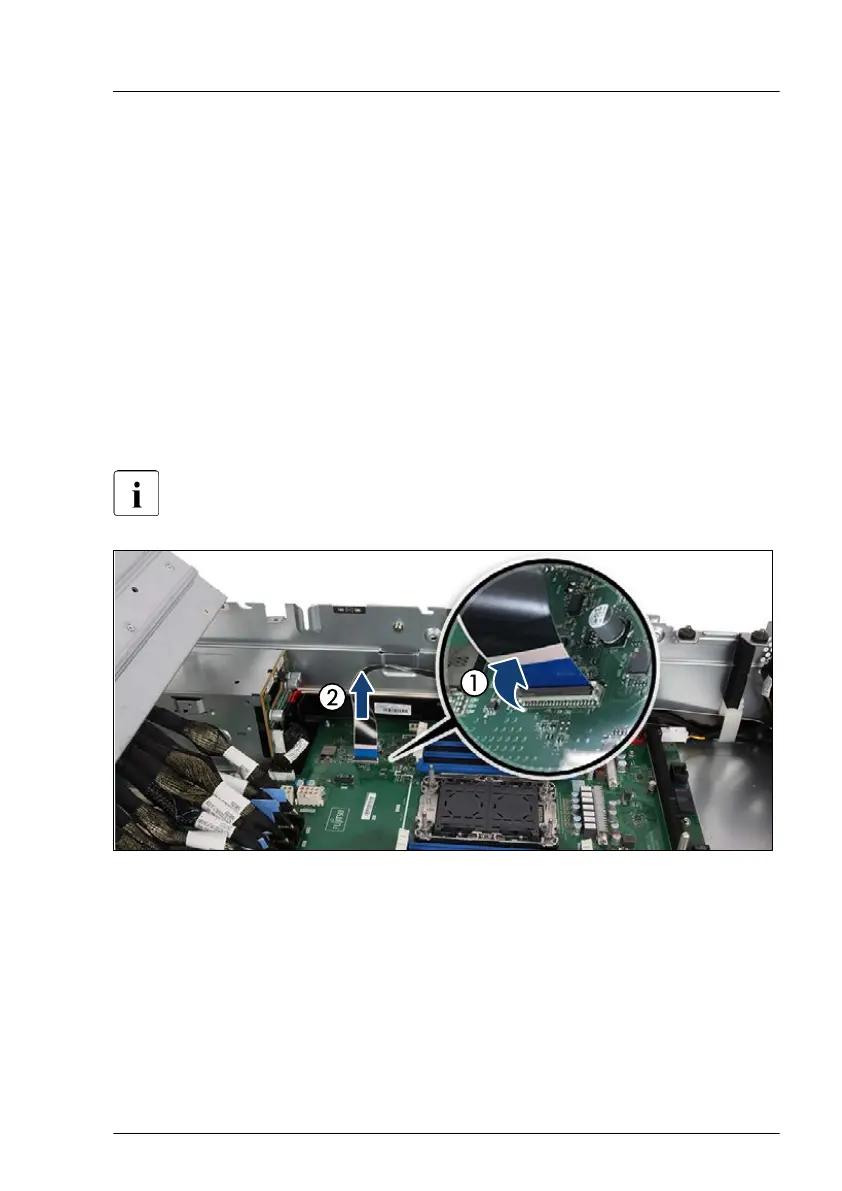

Figure 194: Removing the COP (A)
▶
Pull up the locking bar (1).
▶
Disconnect the front panel cable from the bottom system board (2).
Front panel
