Disconnect all external cables from the I/O panel and expansion cards.
Before removing the power and external cables, take a note where
each cable is installed. Ensure that each cable is reinstalled where it
was installed before the replacement.
▶
If you are not using a cable management arm (CMA kit), ensure that the rear
cables are long enough not to be strained or damaged when extending the
server out of the rack.

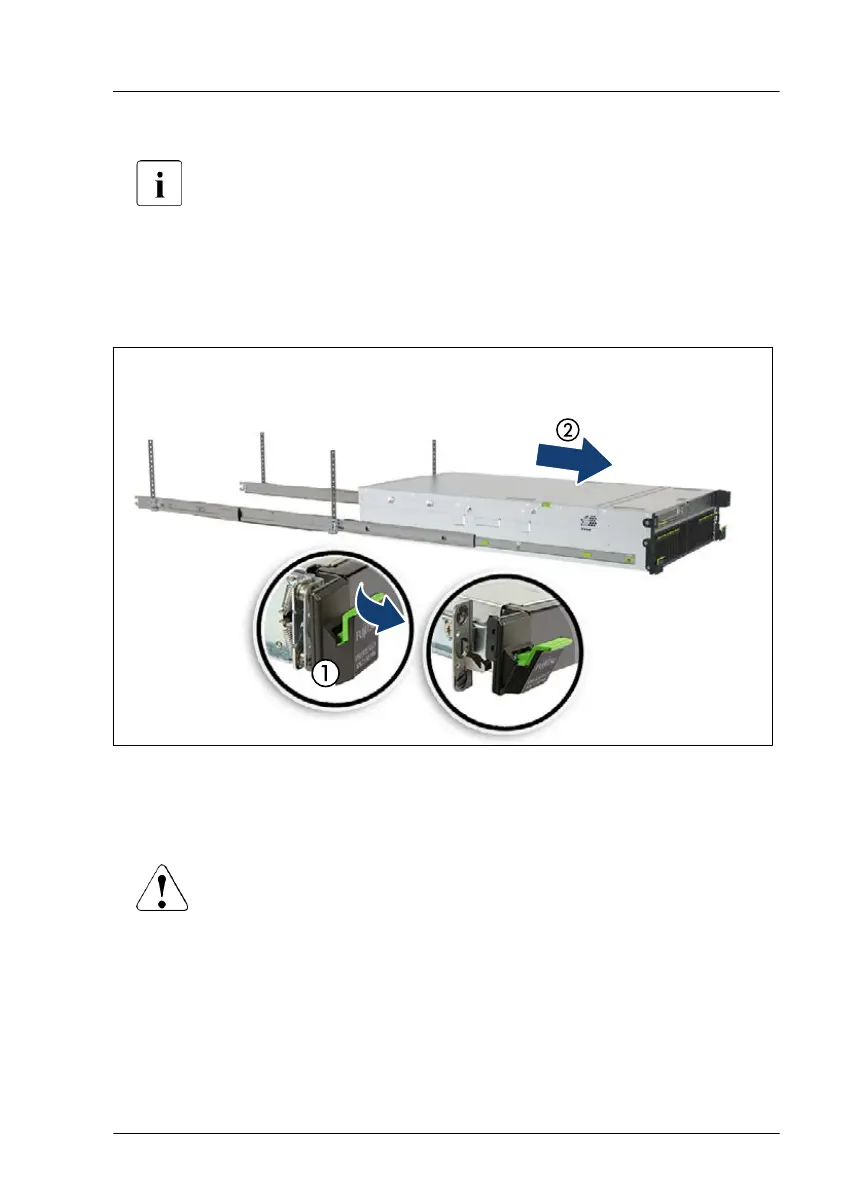

Figure 5: Extending the server out of the rack
▶
Fold down the two quick release levers (1).
▶
Pull the server out of the rack until it locks in place (2).
CAUTION
▶
Do not use the extended server as a surface on which to put
things or as a work surface, and strictly avoid leaning on or
against it.
Basic hardware procedures
RX4770 M6 Upgrade and Maintenance Manual 49
