Installing the cover 3

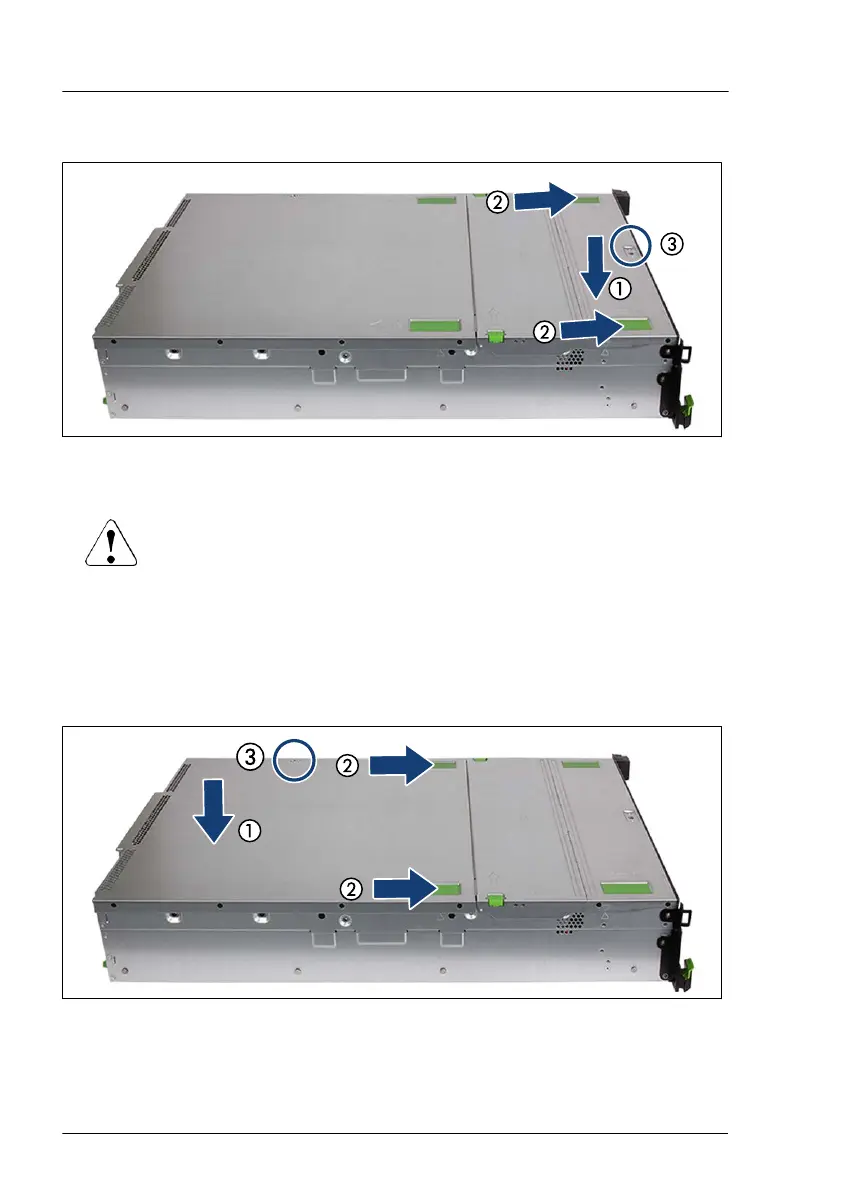

Figure 10: Installing the cover 3
▶
Position the cover 3 on the server (1). Notice the recesses.
CAUTION
▶
Take care that all cables are inside the chassis.
▶
Push the cover 3 to the front side using the green touch points (2).
▶
Fasten the cover 3 with the screw (3).
Installing the cover 2
Figure 11: Installing the cover 2
Basic hardware procedures
54 Upgrade and Maintenance Manual RX4770 M6
