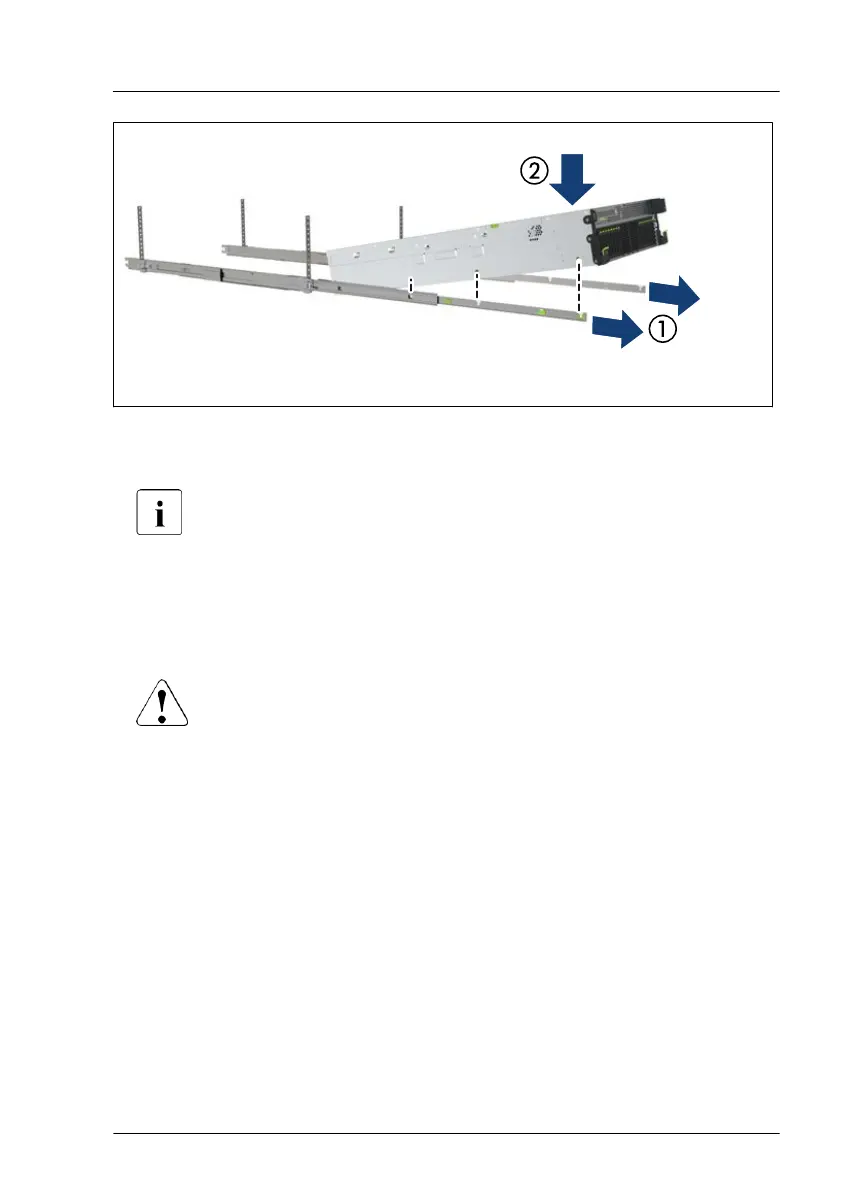

Figure 13: Installing the server in the rack rails
▶
Fully extend the rack rails until they lock in place (1).
The rack rails must click into place so that they can no longer be
moved.
▶
At a slight angle, lower the server onto the rear mounting point on the rack
rails (2).
▶
Ensure that all rack mounting bolts are properly seated in the mounting
points on the rack rails and that the locking bars engage.
CAUTION
▶
First, push the rear mounting bolts in the rear long slots. Then
the other mounting bolts will fit in the direct slots.
Basic hardware procedures
RX4770 M6 Upgrade and Maintenance Manual 57
