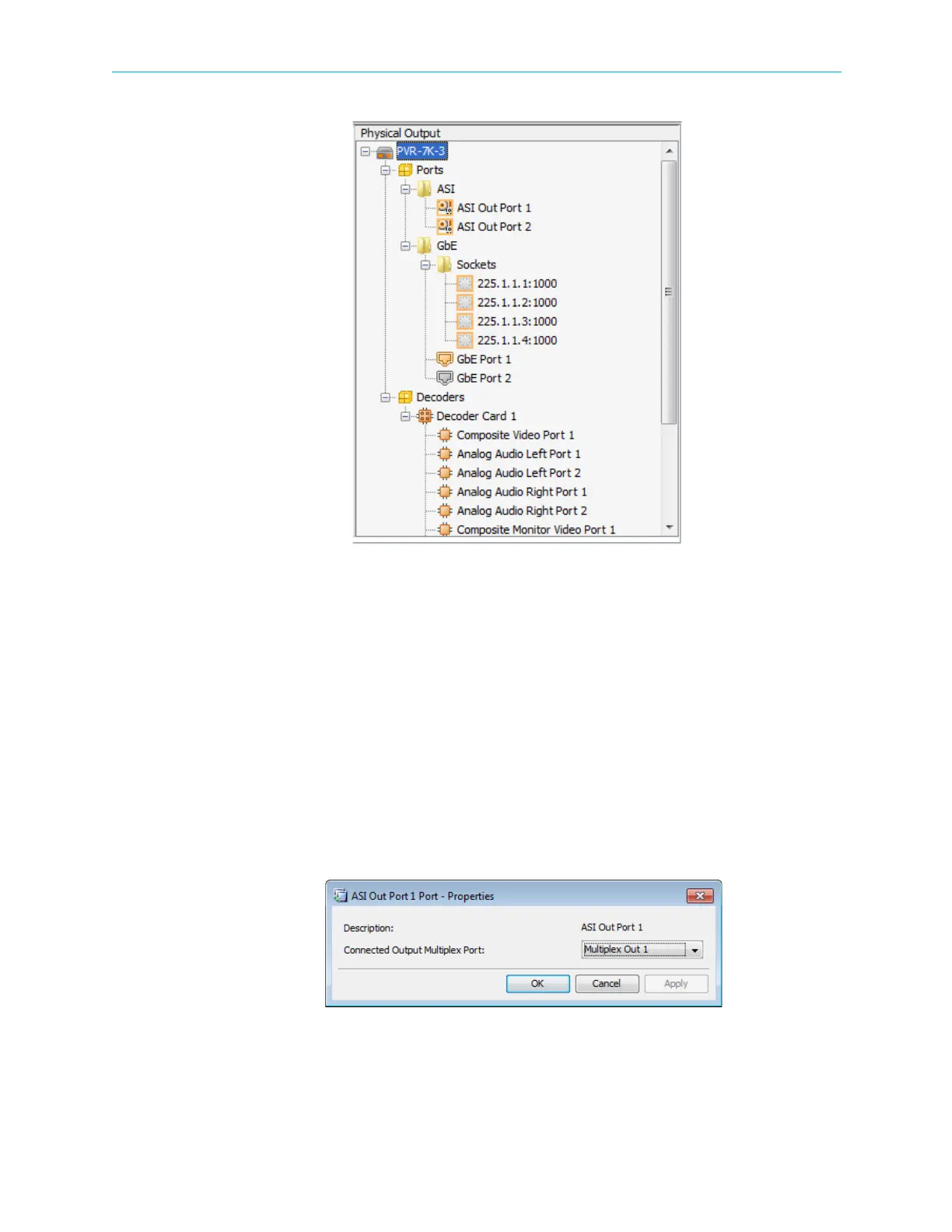

Figure 7–21: Physical Output box
Related topics:
■ ASI Output Port Properties
■ GbE Ports for Output
7.4.1 ASI Output Port Properties
The ASI Output Port Properties dialog displays the basic features of the selected ASI Output
Port element.
To display the ASI Output Port properties:
1. Select the required ASI Output Port icon in the Output Physical box on the Device
Explorer tab.
2. Click Properties on the EMS toolbar.
The information provided by the ASI Output Port Properties dialog includes the following:
■ Description – Displays the identification name of the ASI output port.
■ Connected Output Multiplex Port – Enables selecting the multiplex output to connect to
the ASI output port.
