Harmonic ProView 7100 - RGB Port Pin Configuration

Appendix B Connectors and Front End Card Options RGB Port Pin Configuration
© 2012 Harmonic Inc. 185 ProView 7000 v.2.6, Rev. E
B.2 RGB Port Pin Configuration

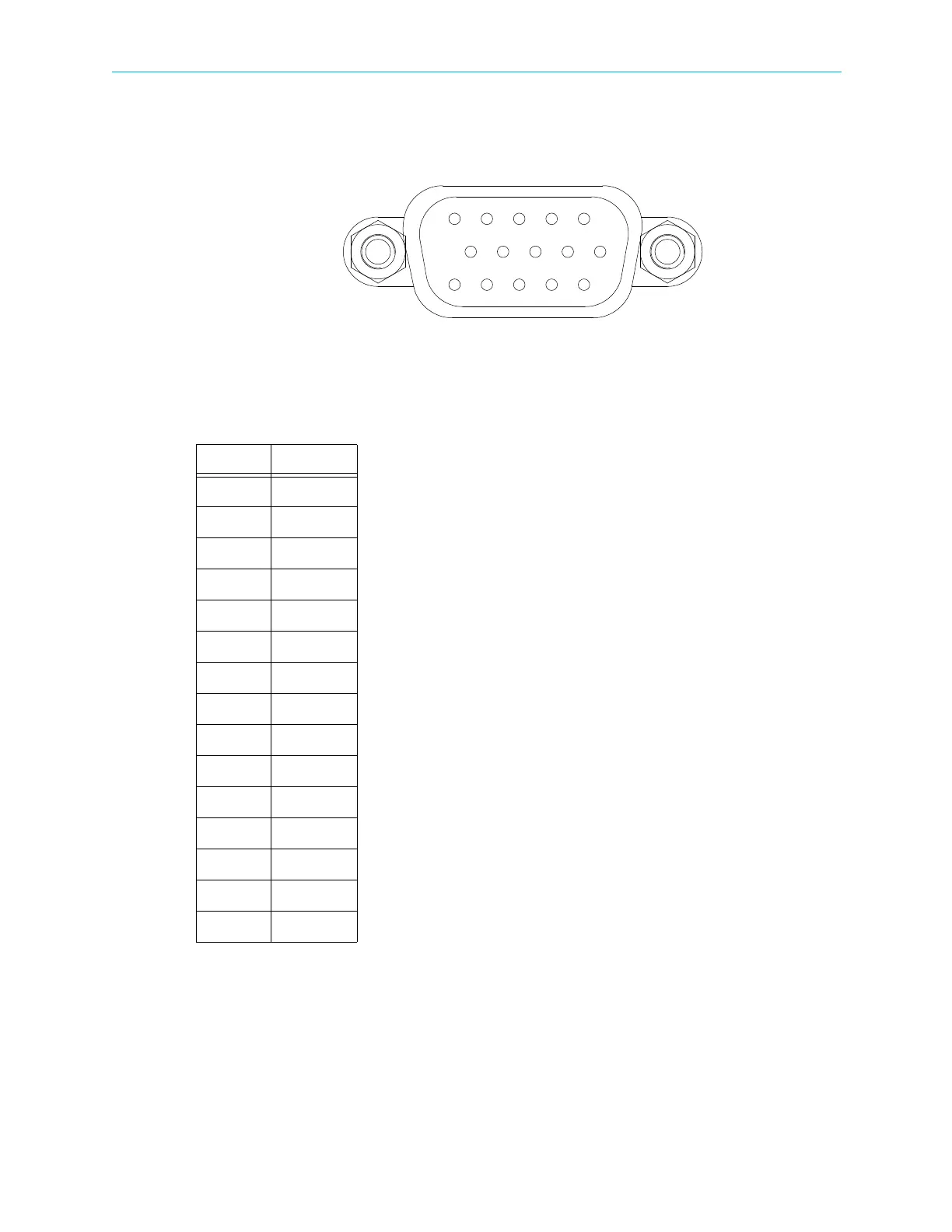

Figure B–5: D-Sub 15 Pinouts
Table B–2: D-Sub 15 Pinout Names
Pin No. Signal
1RED
2 GREEN
3BLUE
4N.U.
5GND
6GND
7GND
8GND
9N.U.
10 GND
11 N.U.
12 N.U.
13 H-SYNC
14 V-SYNC
15 N.U.
1234
5
678910
1112131415
