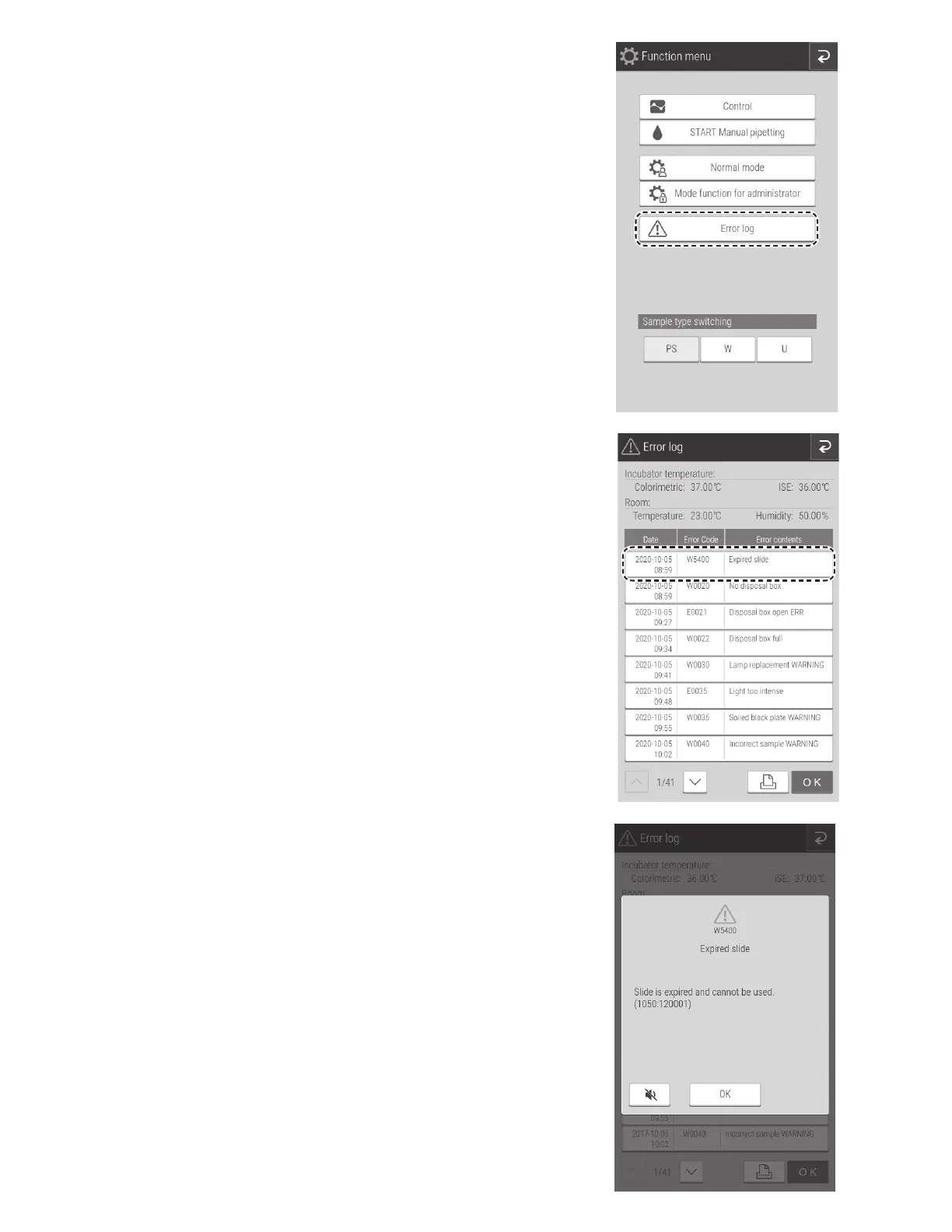

2. Touch ERROR LOG.

An error log list is displayed.

3. Touch an error.

The error details are displayed.
