Heska Element DC5X - Tube Setting for Diluent and Reference Fluid; Print Setting for Measured Result

115

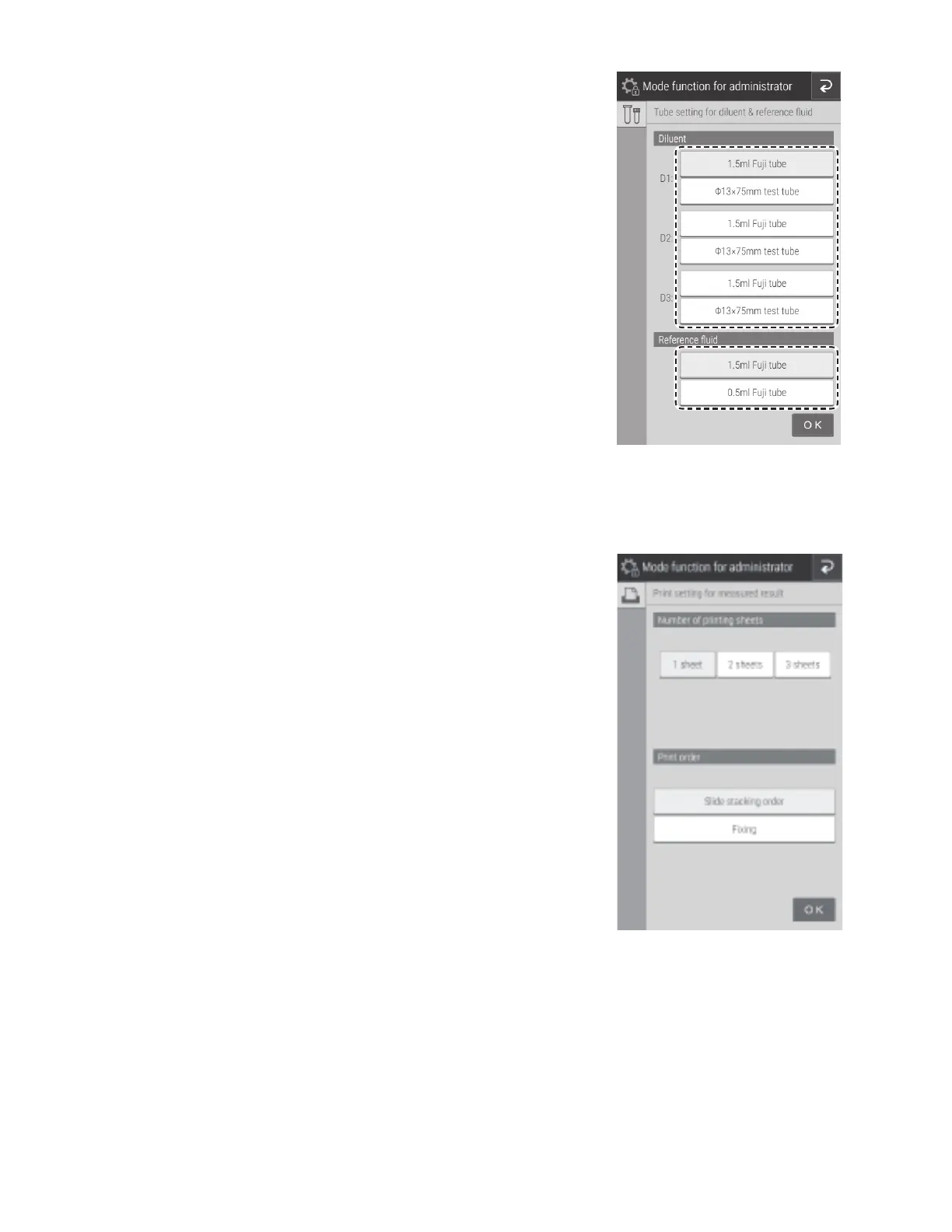

8.4.12 Tube setting for diluent and reference fluid
Configure the test tube type to be used for diluent and reference
fluid.
NOTE: For the types of containers that can be used for diluent and
reference fluid. Section 5.4 and 5.5
• Touch the container you want to use.
NOTE: [D1] through [D3] under [Diluent] indicate position of the
diluent holder. [D2} is the default for veterinary analyzers and
should be set to 1.5 ml Fuji tube.
8.4.13 Print setting for measured result
Configure the print quantity (1 to 3 sheets) and print order of
measurement results.
• Touch the print quantity you want to configure.
• For [Print order], you can select [Slide stacking order] or [Fixing].
NOTE: If [Fixing] is selected, printing occurs in the following order.
TP  ALB  TBIL  GOT/AST  GPT/ALT ALP  LDH  GGT 
CPK  v-AMY  TCHO  TG UA  BUN  CRE  Na-K-Cl 
Ca  IP Mg  GLU  NH3  v-LIP  TCO2
