Cleaning, disinfection and maintenance

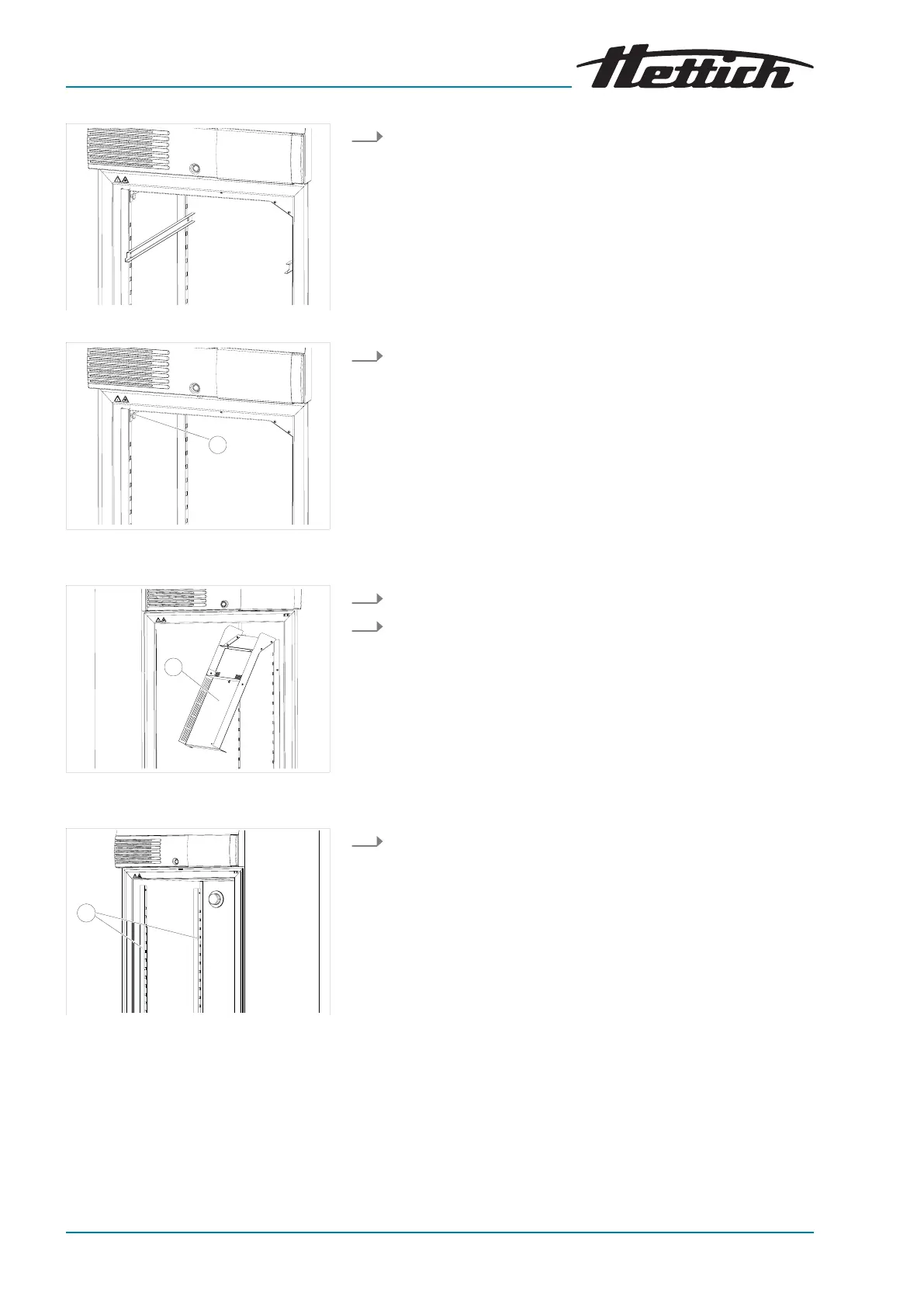

Fig. 208: Removing the support rails
1
Fig. 209: Knurled screws
1 Knurled screws
1
Fig. 210: Top bafe sheet
1 Top bafe sheet
1
Fig. 211: Latching rails
1 Latching rails
2. Disengage the support rails upward and out of the front
latching rail and then pull out towar
d the front from the rear
latching rail.
3. Hold onto the bafe sheet and scr
ew out both knurled screws.
4. Flip the top bafe sheet down.
5. Remove the bafe sheet towar
d the front.
6. Disengage the two latching rails upward and then remove
towar
d the front.
