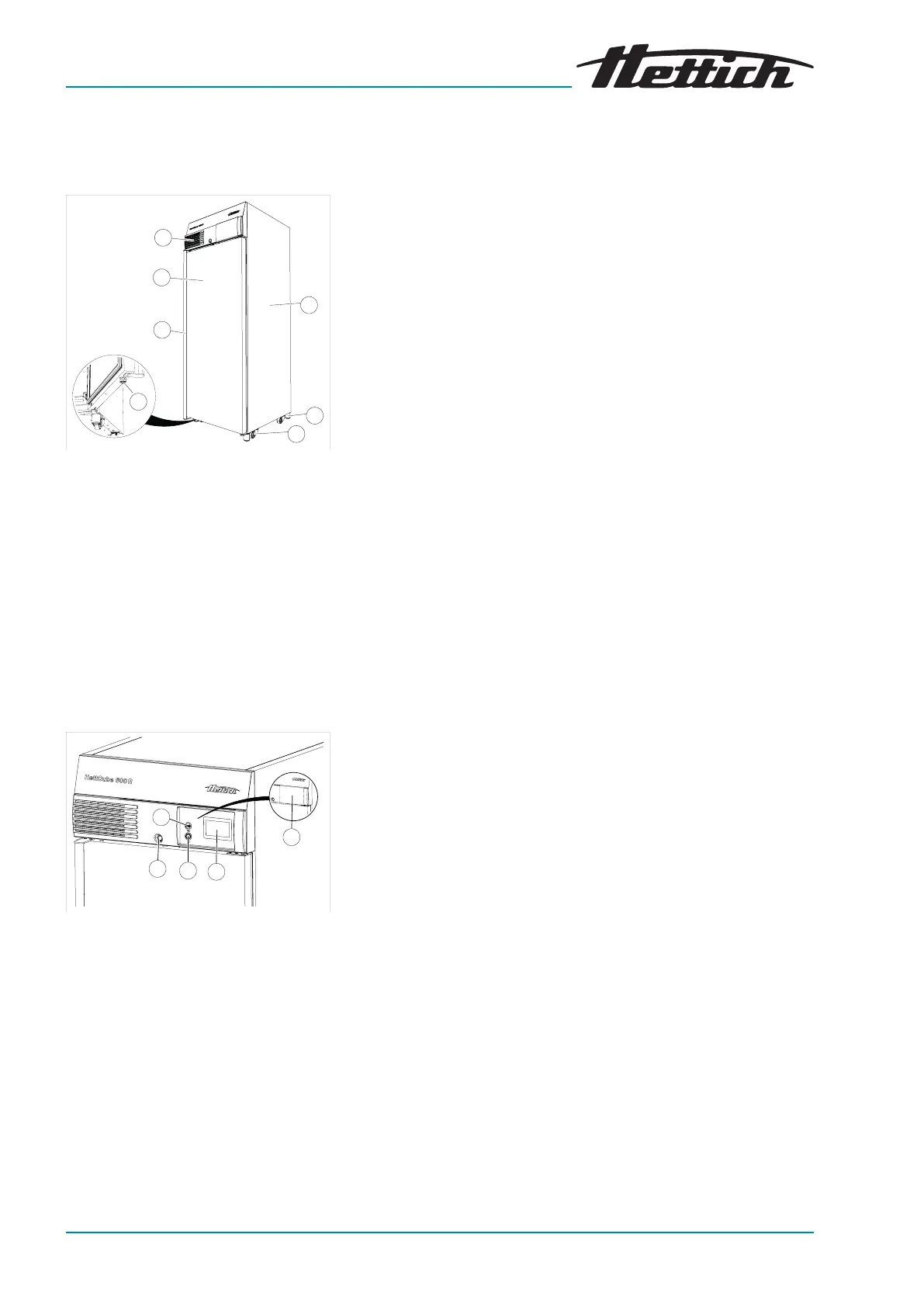

Fig. 4: Front side of device
1 Housing made of powder-coated
steel sheet-metal
2
Device foot
Chapter 5.2.1 ‘Instal-
ling the incubator’ on page 30
3
Transport rollers
Chapter 5.2.1
‘Installing the incubator’
on page 30
4 Adjustable foot to protect the incu-
bator from tilting
5 Door handle
6 Door, self-closing at an opening
angle less than 90°
7 Front panel
Fig. 5: Front panel
1 Service interface (USB)
2 Door lock
3 Switch
4 Touchscreen
5
Mechanical display protection
Chapter 6.4 ‘Fixing the mechanical
display protection of the control
panel’ on page 45
3 Device description
3.1 Standard device
Touchscreen incl.
■ Temperature guard, class 3.1; for cooled devices, class 3.1 and
3.2.; individually adjustable
Chapter 6.13.5 ‘Temperature
guard’ on page 98
.
■ Tolerance band asymmetrically adjustable
Chapter 6.13.4 ‘Tol-
erance band’ on page 97
.
■ Door alarm individually adjustable
Chapter 6.13.9 ‘Door’
on page 106
.
The incubator is equipped with a temperature guard of protection
class 3.1, in accordance with DIN12880:2007-05. The temperature
guard is for protecting the incubator (device protection), its surround-
ings and the sample material (sample protection) against impermis-
sible, excessive temperatures.
Class 3.1:
Device protection and sample protection (excessive temperatures).
Class 3.2:
Sample protection (excessive temperatures, for cooled incubators
only).
If the electronic temperature regulation fails during operation, the
temperature guard takes over the regulating function.
Further information about the temperature guard can be found in the
operating instructions
Chapter 6.13.5 ‘Temperature guard’
on page 98
.
