Inserting the telescope rails

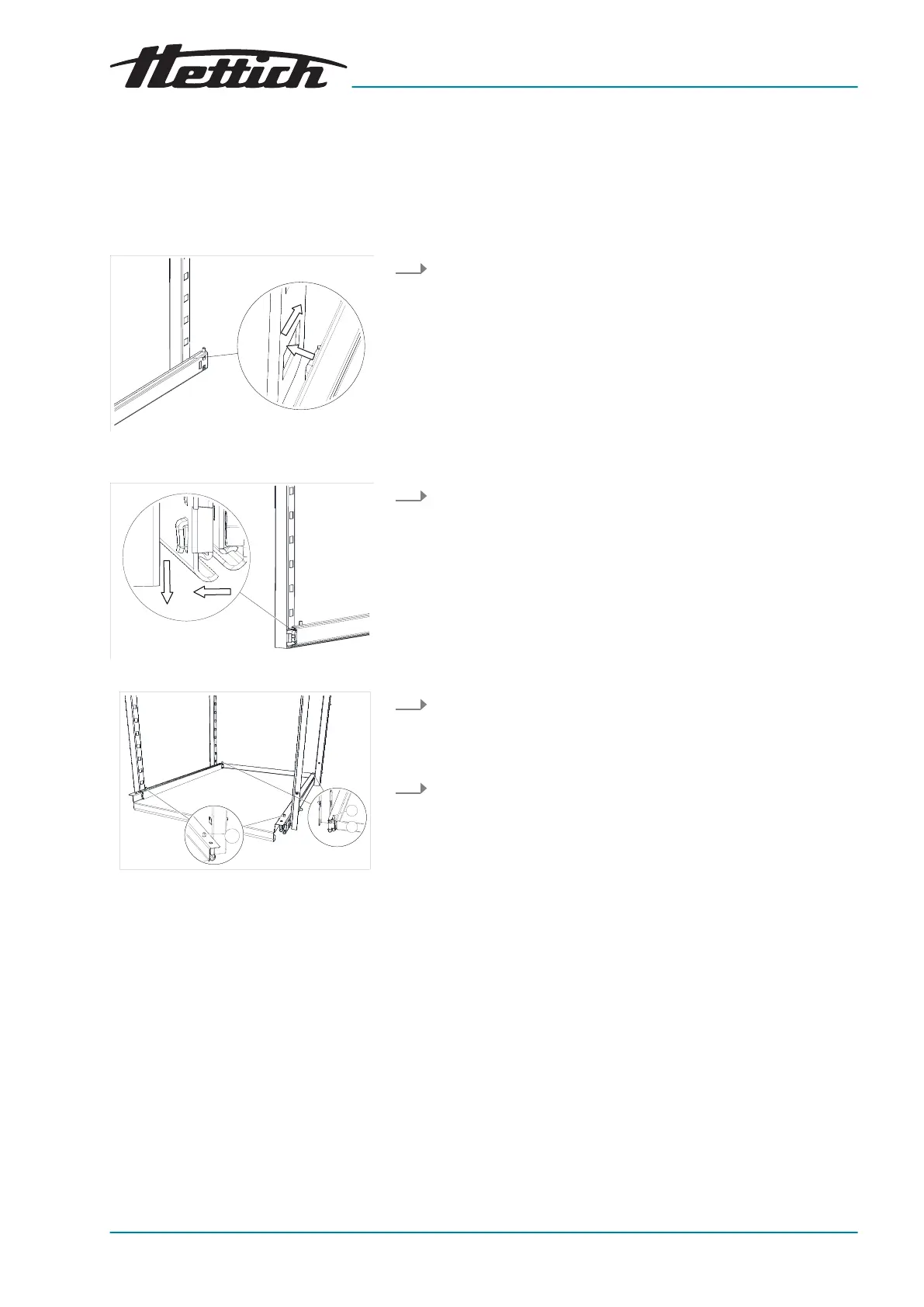

Fig. 42: Snapping telescopic rails in at
the rear
Fig. 43: Engaging front side
Fig. 44: Pushing in the slide-in module
1 Recesses at the rear on the slide-in
module
2 Pins of telescopic rails
5.3.2 Telescopic slide-in modules
Befor
e inserting the slide-in modules and drawers, the telescope rails
included in the delivery must be inserted.
1. Push the telescope rails into the rear latching rail at the desired
height.
2. Engage the telescope rails in the front latching rail.
3. Place the slide-in module or the drawer on the telescope rails
and slide it back until the two notches located in the r
ear of the
slide-in module or the drawer are in the pins of the two tele-
scope rails.
4. Put the slide-in module or the drawer at the front on the tele-
scope rails and engage it in the pins of the two telescope rails.
