Technical data
9.7 Denition of the utilized space
A
A
A-A
T
B
H
C
E
D

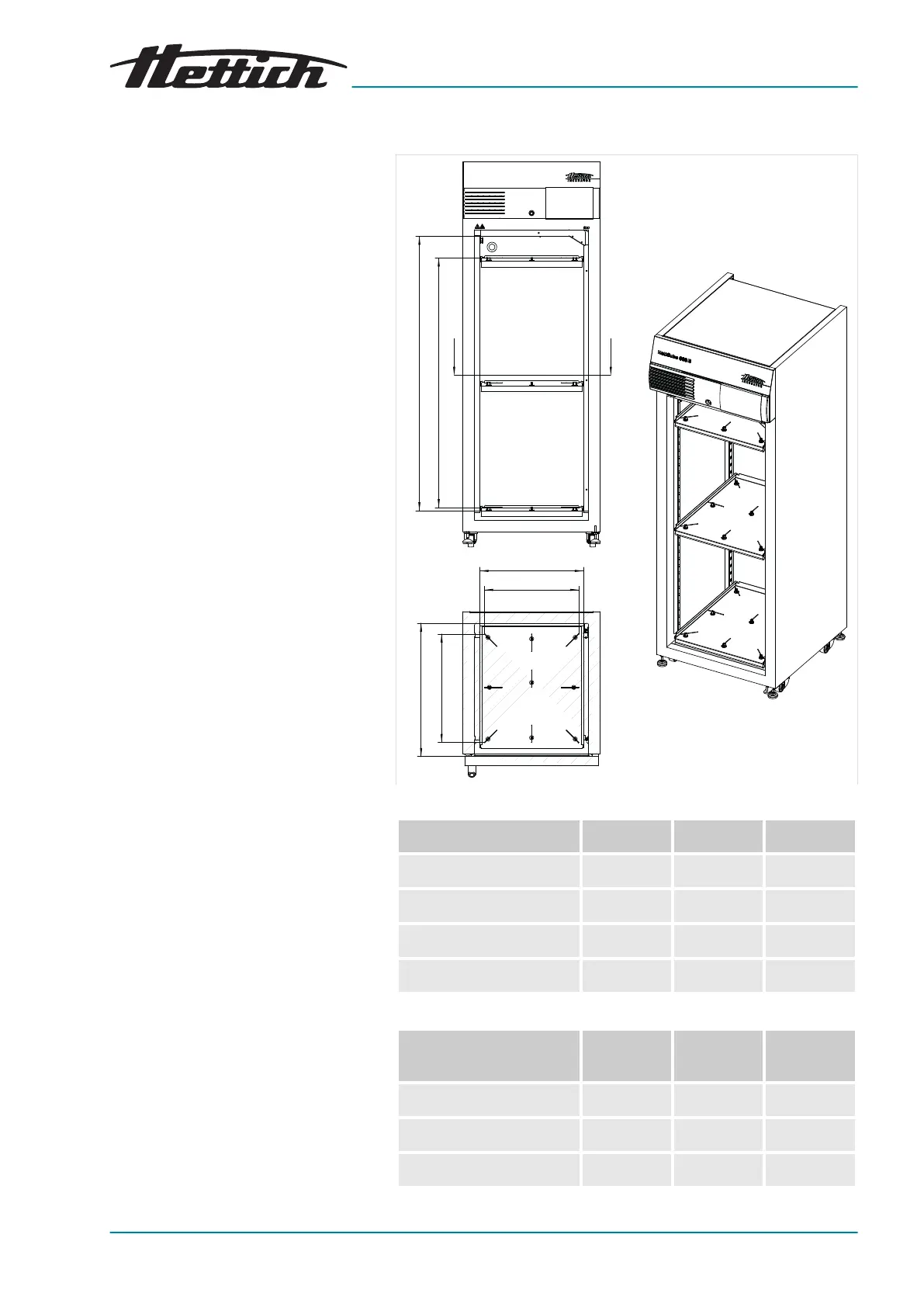

Fig. 215: Utilized space
Interior 600/600 R 400/400 R 200/200 R
C (in mm) 690 690 690
D (in mm) 535 535 535
E (in mm) 1415 850 420
Interior, rounded (in litres) 520 310 150
Tab. 3: Interior
Utilized space position
above sensor
600/600 R 400/400 R 200/200 R
W (in mm) 486 486 486
D (in mm) 560 560 560
H (in mm) 1290 731 301
