Connection of additional devices
(Switchboar
d option)

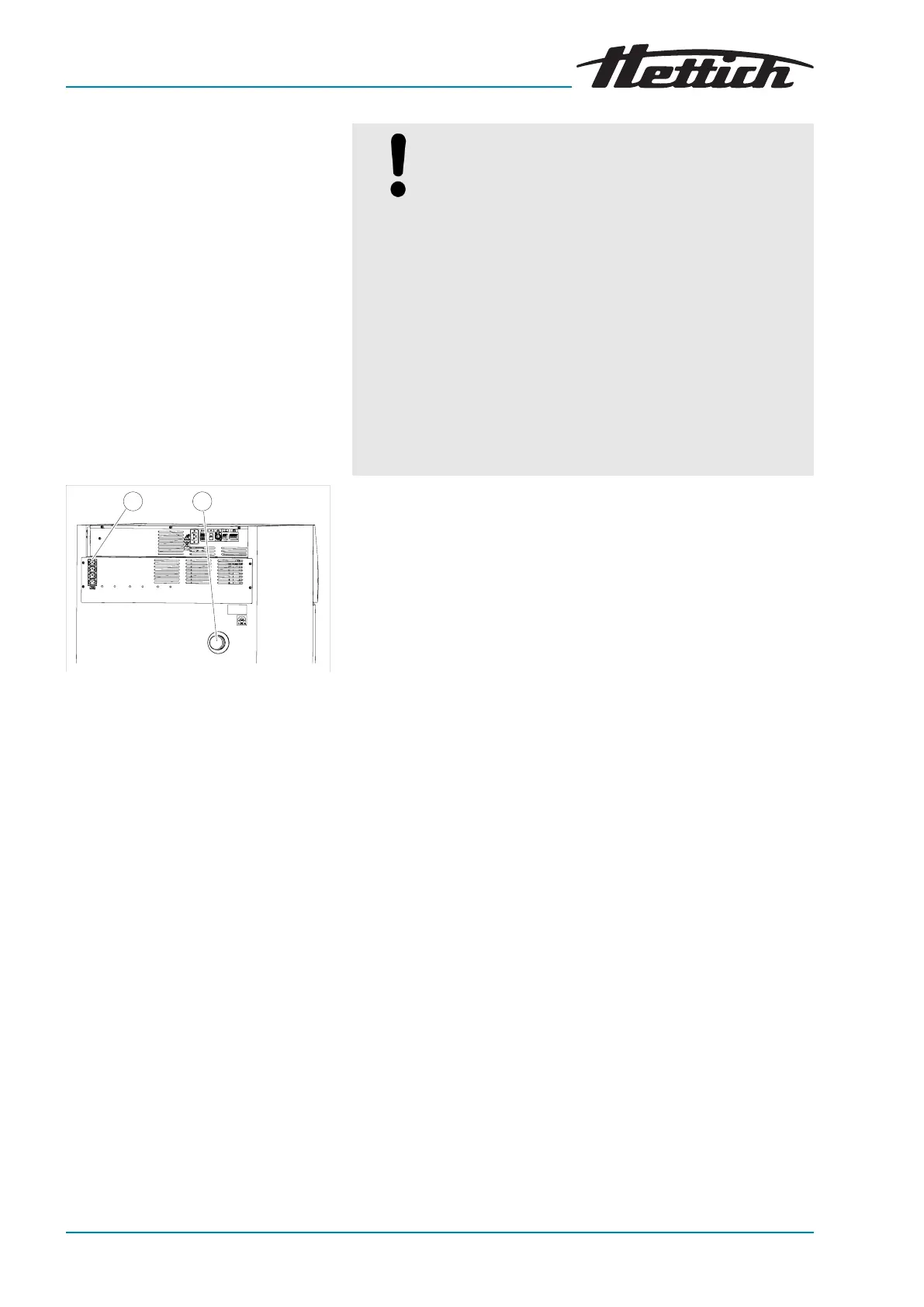

Fig. 27: Connections for additional
devices
1 Connections for additional devices
2 Access port
NOTICE
An excessively high interior temperature can result in
damage to the incubator
.
External devices which are operated inside the incu-
bator must not exceed the permitted power, since the
uncontrolled temperature increase can result in
damage to the incubator.
− If there is additional heat input in the cooled incu-
bator
, observe the maximum possible heat com-
pensation.
− Monitor the temperature process ow of the incu-
bator
.
− Connect a signal transducer to the potential-free
alarm contact in or
der to also be informed of fault
conditions outside of the viewing range of the
incubator.
Additional devices which are placed in the incubator, for example,
can be connected her
e. The outputs can all be switched on and off
together via the control contact
Chapter 6.13.6 ‘Control contact
(option)’ on page 101
of the incubator. The cables of the additional
devices can be guided through the access port
Chapter 3.2.2
‘Additional device access port’ on page 19
into the interior of the
incubator.
