9.2 Using a PC Card
152

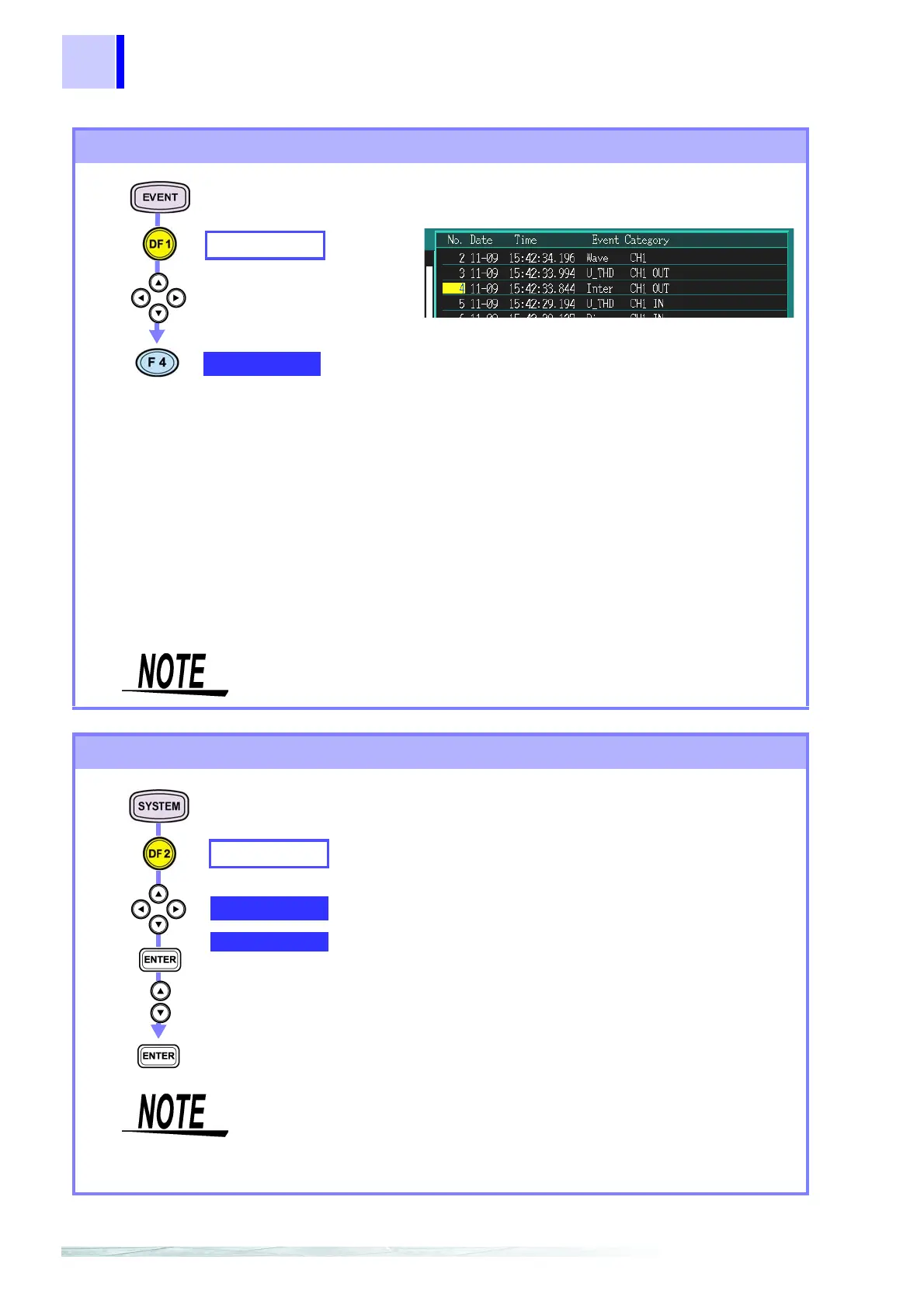

Manual saving of the measured data files 3 (Text format: event waveform data)
Transient waveform data cannot be saved in text format.
LIST
Waveforms that can be saved differ depending o
the connection method setting.
(Wiring method)
1P2W............ U1, I1
1P3W............ U1, U2, I1, I2
3P3W2M....... U1, U2, I1, I2
3P3W3M....... U1 to U3, I1 to I3
3P4W............ U1 to U3, I1 to I3
4ch:AC/DC.... U4, I4
WaveTextSave
You can save files when the operation status is
[ANALYZING].
Select No.
To save multiple event wave-
forms, select a number (No.)
and repeat the process.
❖ Text Event Waveform Data Format Composition (page
226)
Measured data files Auto-save (binary format) settings
• Measured data files are saved automatically during recording.
While auto-save is in progress, do not remove the PC card from
the 3196.
• In binary format, all measurement data of the 3196 can be
saved to a PC card.
RECORDING
Interval
Auto save
Measured data files are automatically saved to the PC card with the
internal memory.
Select from pull-
down menu
1. Set the interval. (page 84)
1, 3, 15, or 30 sec, 1, 5, 10, 15, or 30 min, 1/2 hour
2. Set the auto-save format.
BINARY
To Next Page
