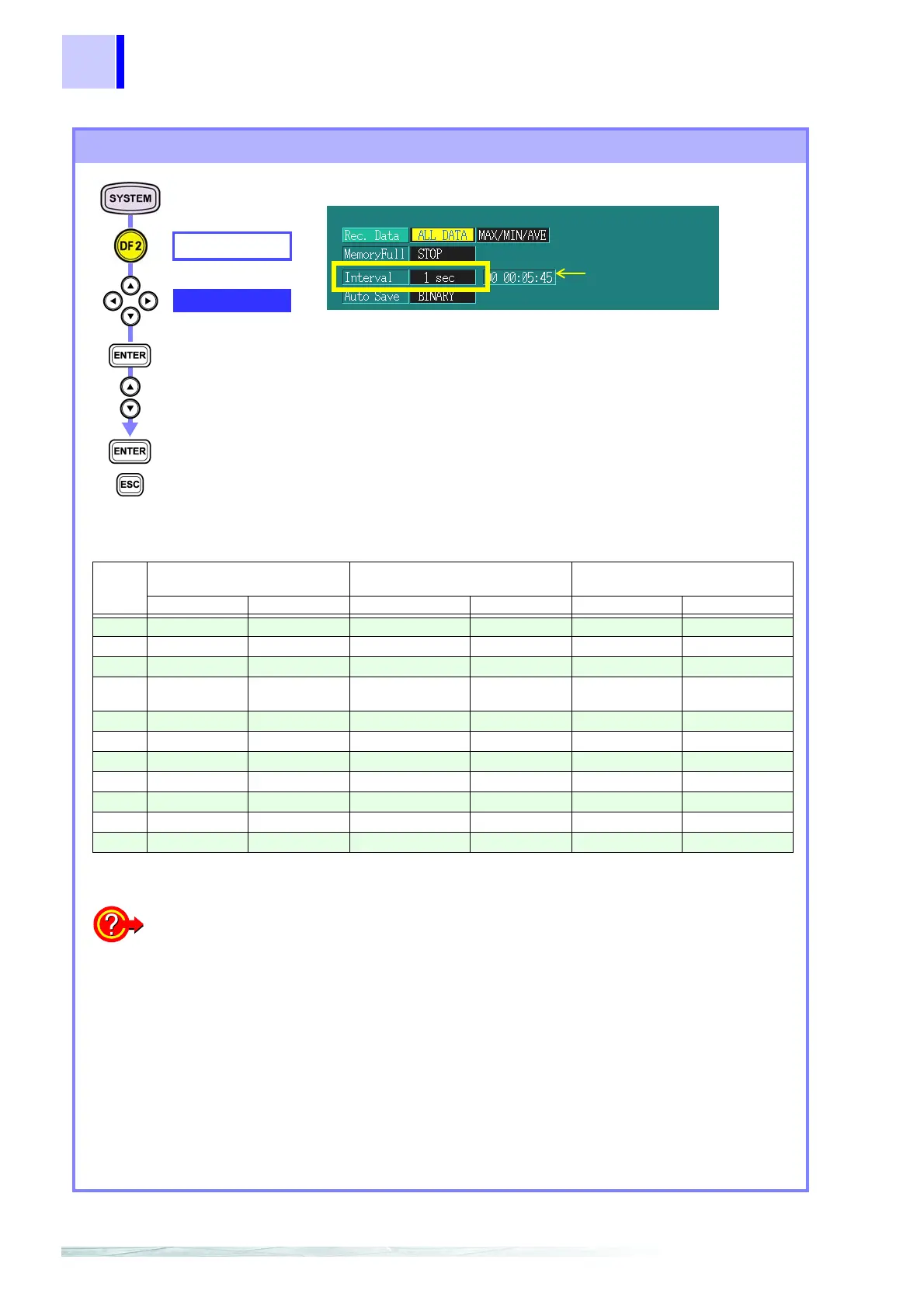

6.2 Time Plot Settings
84
Setting intervals
Available interna
l
memory (only)
recording time
RECORDING
Interval
Select from pull-
down menu
Confirm
Cancel
1, 3, 15, or 30 sec, 1, 5, 10, 15, or 30 min, 1/2 hour
Depending on the data recorded and interval settings, the
time series graph's possible recording time changes.
❖ Types of settings to record data 1 (page 82)
❖ Types of settings to record data 2 (page 83)
Possible recording time of the time series graph
Harmonics order data is not saved for Power, but it is saved in THD.
Interval
ALL DATA (Saves all data)
P&Harm (Saves RMS values and
harmonics)
Power (Saves RMS values only)
MAX/MIN/AVE AVE MAX/MIN/AVE AVE MAX/MIN/AVE AVE
1 s 5 m 45 s 17 m 12 s 8 m 29 s 25 m 18 s 2 h 1 m 51 s 5 h 32 m 21 s
3 s 17 m 15 s 51 m 36 s 25 m 27 s 1 h 15 m 54 s 6 h 5 m 33 s 16 h 37 m 3 s
15 s 1 h 26 m 15 s 4 h 18 m 2 h 7 m 15 s 6 h 19 m 30 s 1 day 6 h 27 m 45 s 3 days 11 h 5 m 15 s
30 s 2 h 52 m 30 s 8 h 36 m 4 h 14 m 30 s 12 h 39 m
2 days 12 h 55 m
30 s
6 days 22 h 10 m
30 s
1 m 5 h 45 m 17 h 12 m 8 h 29 m 1 day 1 h 18 m 5 days 1 h 51 m 13 days 20 h 21 m
5 m 1 day 4 h 45 m 3 days 14 h 1 day 18 h 25 m 5 days 6 h 30 m 25 days 9 h 15 m 31 days
10 m 2 days 9 h 30 m 7 days 4 h 3 days 12 h 50 m 10 days 13 h 31 days 31 days
15 m 3 days 14 h 15 m 10 days 18 h 5 days 7 h 15 m 15 days 19 h 30 m 31 days 31 days
30 m 7 days 4 h 30 m 21 days 12 h 10 days 14 h 30 m 31 days 31 days 31 days
1 h 14 days 9 h 31 days 21 days 5 h 31 days 31 days 31 days
2 h 28 days 18 h 31 days 31 days 31 days 31 days 31 days
Measuring for
an extended period
of time.
Use a Flash ATA card and set the “Auto Save” item to “BINARY.
”
• When using a 32-MB Flash ATA card:
above interval x approximately 2.5
• When using a 64-MB Flash ATA card:
above interval x approximately 5
(However, you can only measure for up to 31 days.)
❖ Measuring for an extended period of time more than 1 month
.
Setting the repeated recording (page 87), Setting the number
of repeated recording (page 88)
