Using the A/B Cursors
Specifying a waveform range

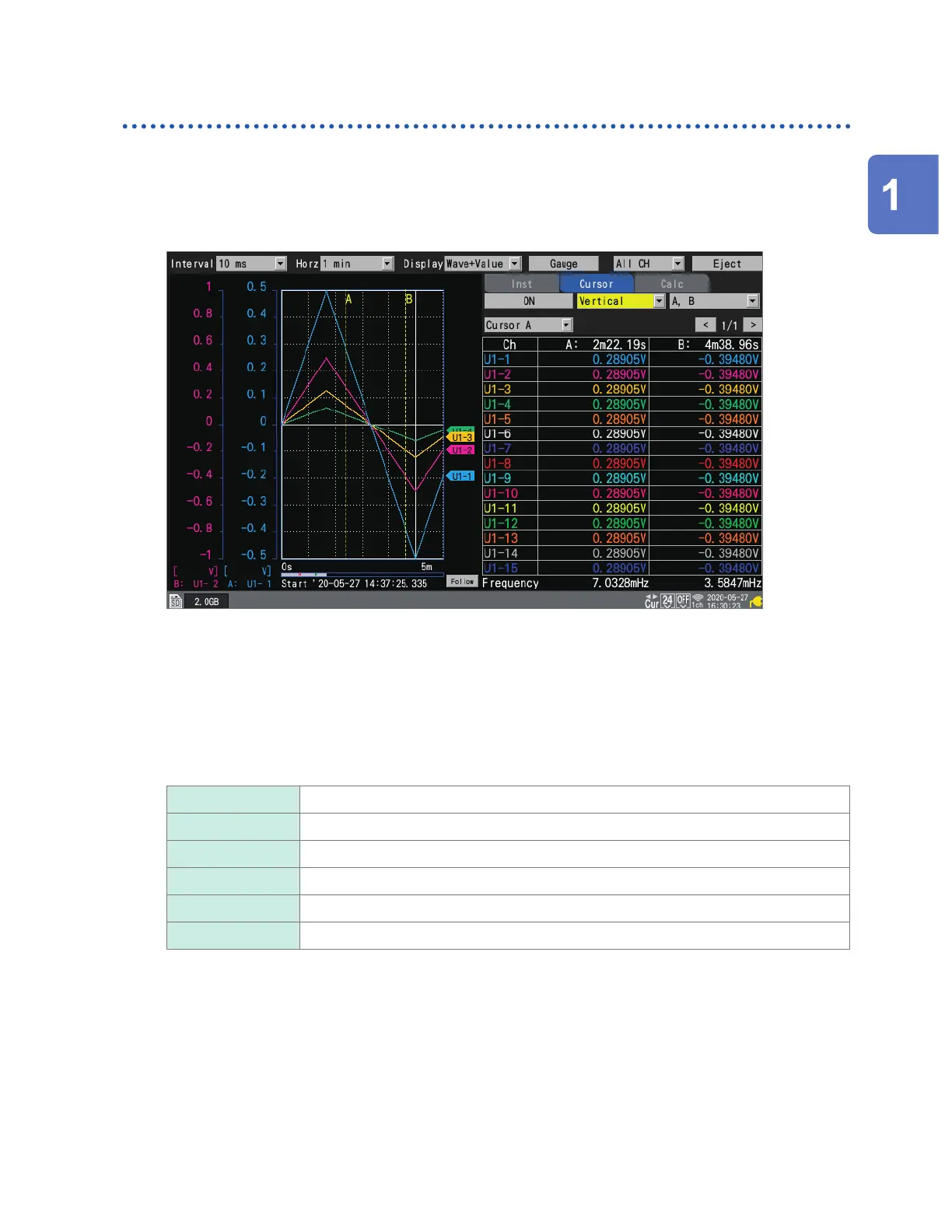

This section describes how to specify a waveform range using the A/B cursors.
When saving waveform data, you can save only the data in the specied range.
You can also specify the range over which to perform numerical calculations.
Range specication is performed using the vertical axis cursors.
Ranges that can be specied using the A/B cursors
The following settings allow you to specify the range:
• Manual saving: “Under [Range], select the range of data to save.” (p. 150)
• Selective save operation: “Under [Range], select the range of data to save.” (p. 153)
• Numerical calculation: “Specify the range with the A/B cursors.” (p. 199)
• X-Y compositing (A-B only): “1.15 X-Y Compositing” (p. 98)
All

Selects the waveforms for the entire recorded length, without regard to the A/B cursors.
A-B Selects the waveforms between the A and B cursors.
Start-A Selects the waveforms from the beginning to the A cursor.
Start-B Selects the waveforms from the beginning to the B cursor.
A-End Selects the waveforms from the A cursor to the end.
B-End Selects the waveforms from the B cursor to the end.
