197
Performing Numerical Calculations
Real-time numerical calculations (automatic calculations)
This section describes how to perform numerical calculations while measurement is in progress.
It also describes how to review calculation results at a given point in time on the [Wave+Value]
screen during measurement.
1
Congure the numerical calculation.
See “Conguring numerical calculations” (p. 194).
2
Press the START key to start measurement.
Numerical calculations will be performed in real time.
3

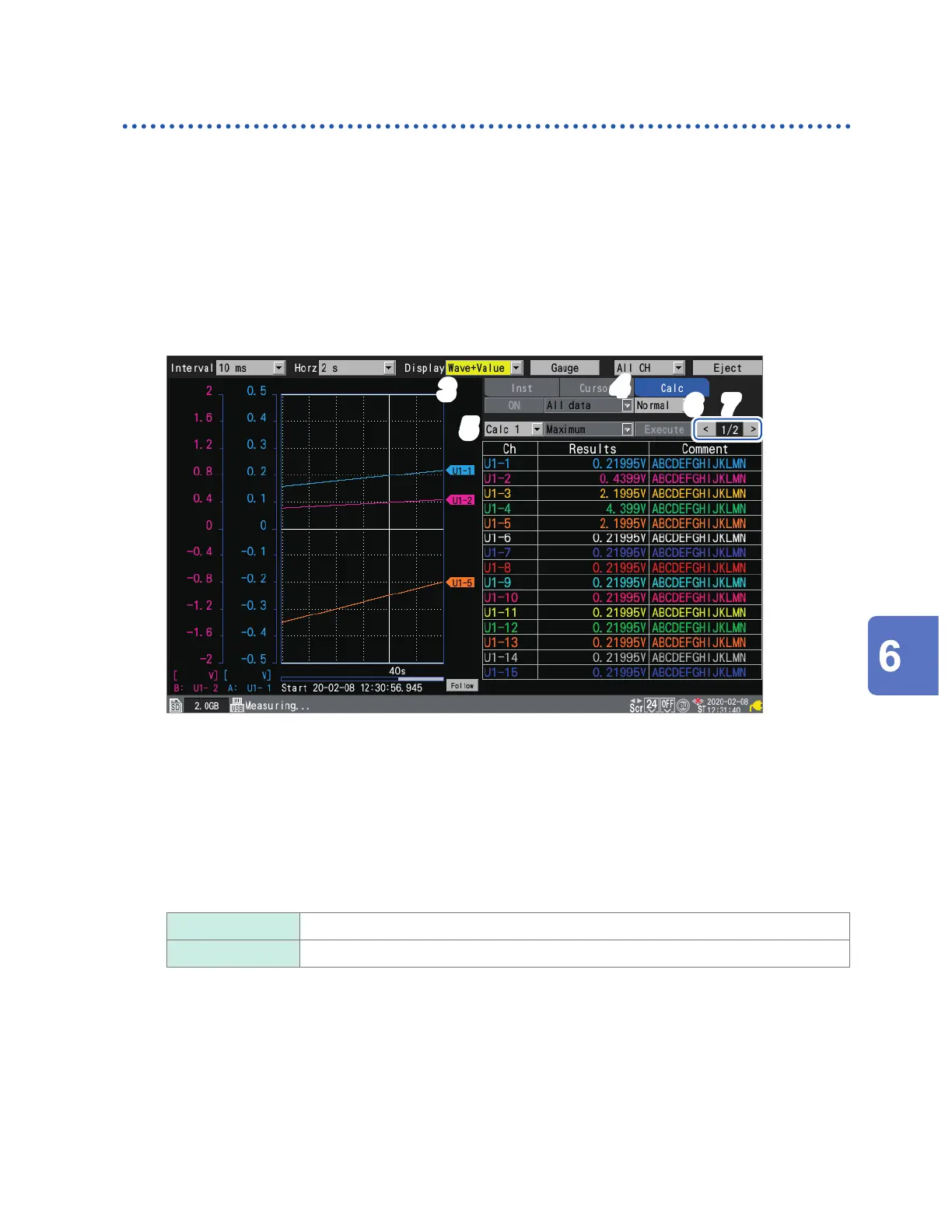

Press the WAVE key to display the [Wave+Value] screen.
3
4
5
6
7
4
Set the numerical display on the right side of the screen to [Calc].
The numerical calculation results will be displayed, allowing you to review the calculation results at
any given point in time.
5
Select a numerical calculation of which you wish to display the result.
You can select a numerical calculation of which you wish to display the result from among [Calc 1]
through [Calc 10].
6
(When [Time split calculation] is set to [Enable]) Select a numerical calculation of which you
wish to display the result.
Normal
Displays the values calculated using data from the start of measurement.
Split Displays the calculated values updated at regular intervals.
When [Split] have been selected, the rst segmented time (can be changed to the date or number of data
points under [Display horizontal axis]) will be displayed underneath the calculation results table.
7
Switch the channel using the [<] and [>] keys (as necessary).
You can change the channel for which to display calculation results.
Numerical and Waveform Calculations
