Data Handling During Communications Disruption

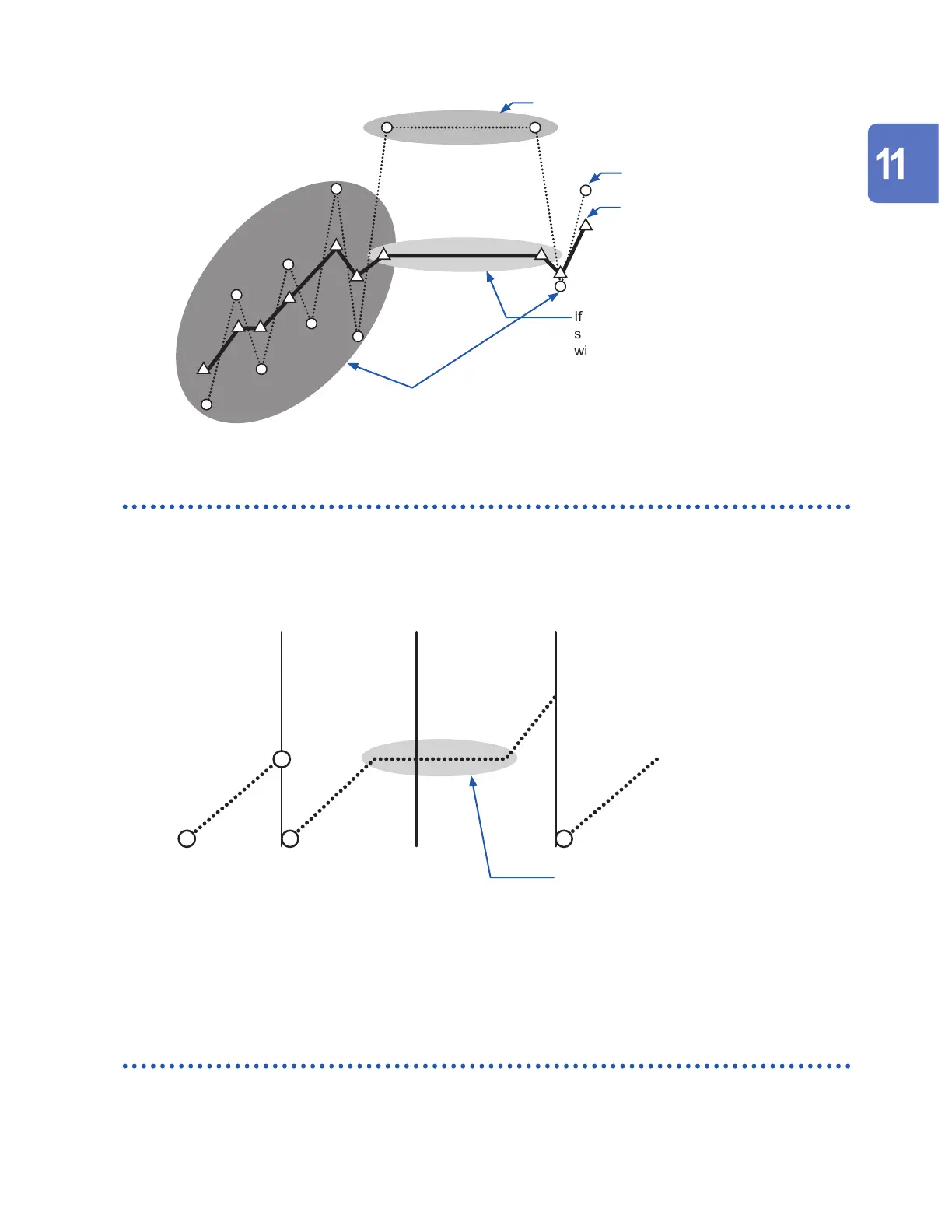

Waveform examples of multiplication, simple average, moving average, or integration
NO DATA
Analog data form calculation source
Waveform calculation data
If an analog channel of the calculation
source is regarded as NO DATA, the value
will be maintained without calculation.
When the module’s data can be acquired after exiting the NO DATA part with
not all data recovered, the instrument will make calculation using the non-
empty data acquired before. The moving average calculation will be made after
resetting the calculation results when a NO DATA point is yielded.
Resetting waveform calculations
Even if attempting to reset the waveform calculation with the reset time setting included, the
instrument will not reset the calculation with data that includes a NO DATA point.
The reset will be performed at the next reset occasion.
Reset interval Reset interval Reset interval
Even if having recovered data, the instrument
will not reset the data acquired across the
calculation target channel includes a NO DATA
point.
In addition, no reset will be performed when the calculation has already progressed beyond the
trigger point upon the recovery. The reset will be performed at the point when the next reset
condition is satised for the rst time since the trigger has activated.
Logger Utility
If the communications between the instrument and the wireless modules are disrupted, the data
transmitted to the Logger Utility cannot be recovered. After stopping measurement, load the
waveform data recovered with the instrument into the Logger Utility.
See “9.1 Using the Logger Utility” (p. 235).
