Hioki MEMORY HiLOGGER LR8450 User Manual

168
Acquiring Data with a Computer (PC)
Activating USB drive mode
This section describes how to set the instrument to [USB drive mode] in order to communicate
with a computer via USB.
> >
2
2
1
Connect the USB cable.
2

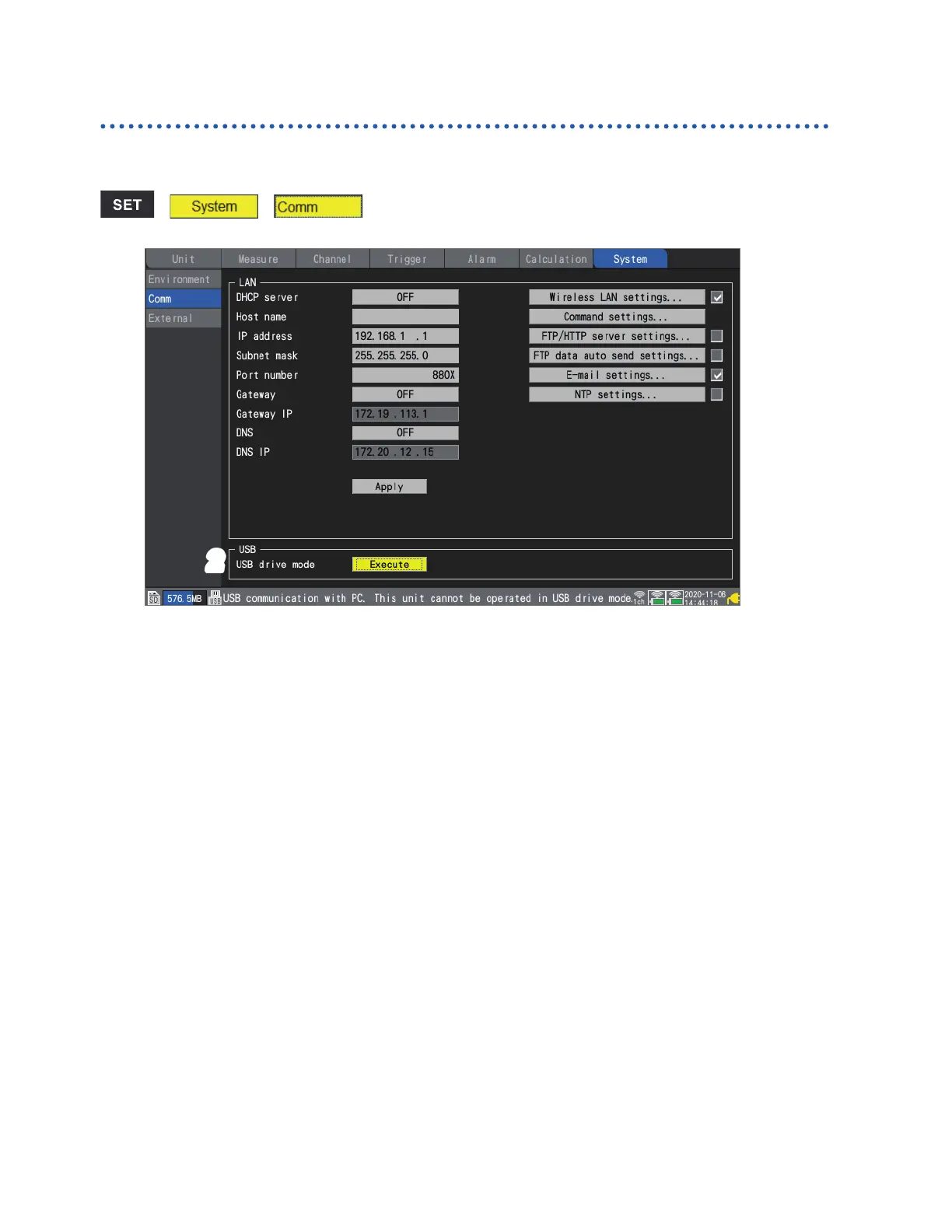

Press the ENTER key while [Execute] under [USB drive mode] is selected.
The instrument will switch to [USB drive mode].
The instrument cannot be operated while in USB drive mode.
In addition, you cannot communicate with the instrument with the Logger Utility.
Canceling USB drive mode
See “Canceling USB drive mode” (p. 169).
HIOKI LR8450A964-03
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Hioki MEMORY HiLOGGER LR8450 Specifications

General

Storage Media	SD card (up to 32 GB)
Measurement Types	Voltage, Temperature, Resistance, Strain, Pulse, Logic
Sampling Rate	1 ms to 1 hour
Interface	LAN, USB, SD card slot
Power Supply	100 to 240 V AC, 12 V DC
Resolution	16-bit
Voltage Range	±10 mV
