Hioki MEMORY HiLOGGER LR8450 User Manual

119
Analog Triggers, Pulse Triggers, Waveform Calculation Triggers
2.3 Analog Triggers, Pulse Triggers, Waveform
Calculation Triggers
This section describes how to set triggers for individual analog channels, pulse channels, or
waveform calculation channels.
The following triggers are available:
• Level triggers
• Window triggers
> > [Unit n], [Remote n] (n = 1, 2, . . .), [Pulse], or [Waveform calculation]
2
2
3
3
1
1
1

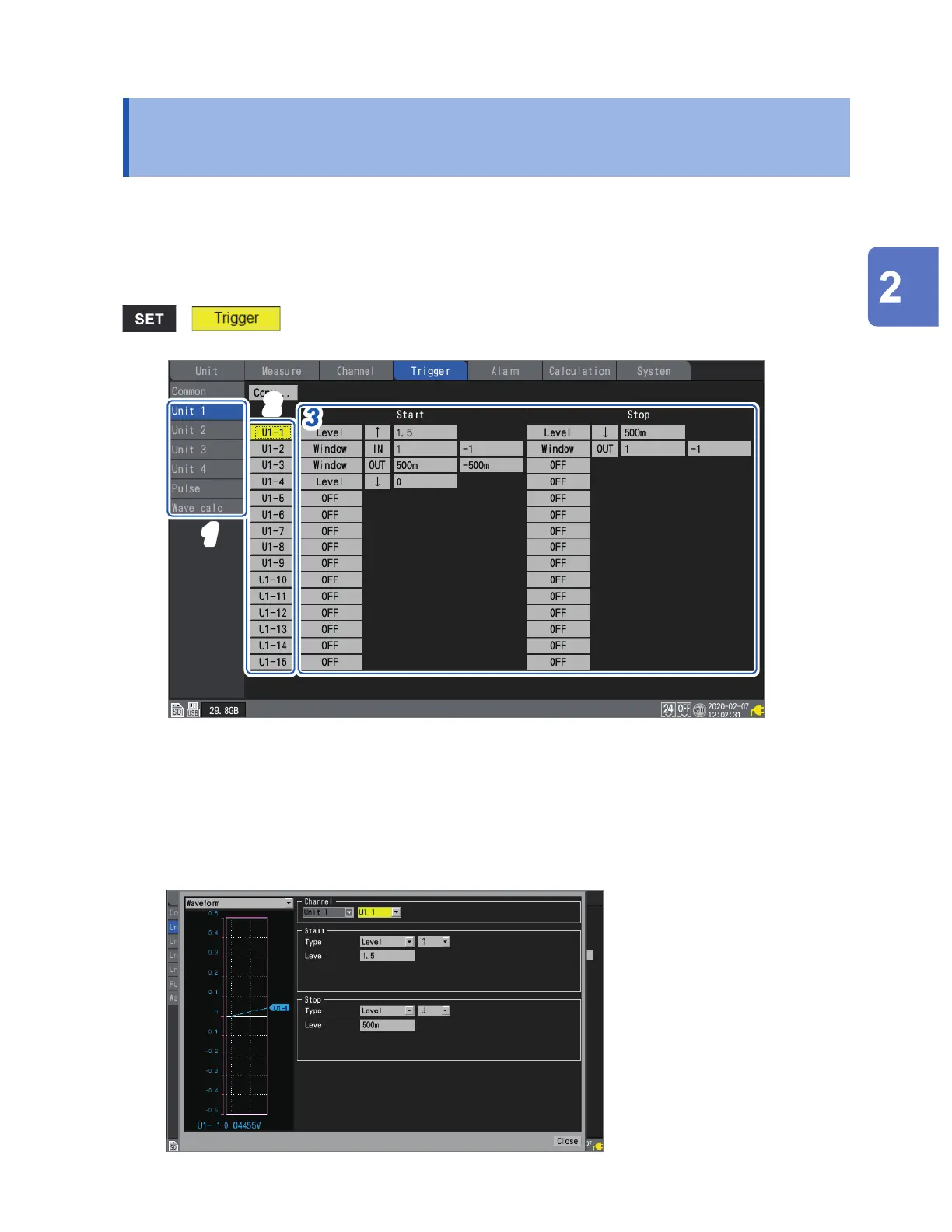

On the sub tab [Unit n], [Remote n], [Pulse], or [Wave calc], select a module.
2
Press the ENTER key while [Un-m] (analog triggers), [Pm] (pulse triggers), or [Wm] (waveform
calculation triggers) for the channel you wish to set is selected (m = 1, 2, . . .).
The channel trigger settings window will open.
Analog triggers
Trigger Function
