Hioki MEMORY HiLOGGER LR8450 User Manual

260
Performing Remote Operation Using the HTTP Server
Remote version update
You can update the instrument and modules through a web browser.
When the instrument and modules need to be updated, Hioki will release the updating les and
version update procedure on the company’s website.
To update the instrument and modules remotely, download a compressed folder from the website
and extract it in advance.
Neither an SD Memory Card nor a USB Drive is required.
4
4
5
5
3
3
2
2
1

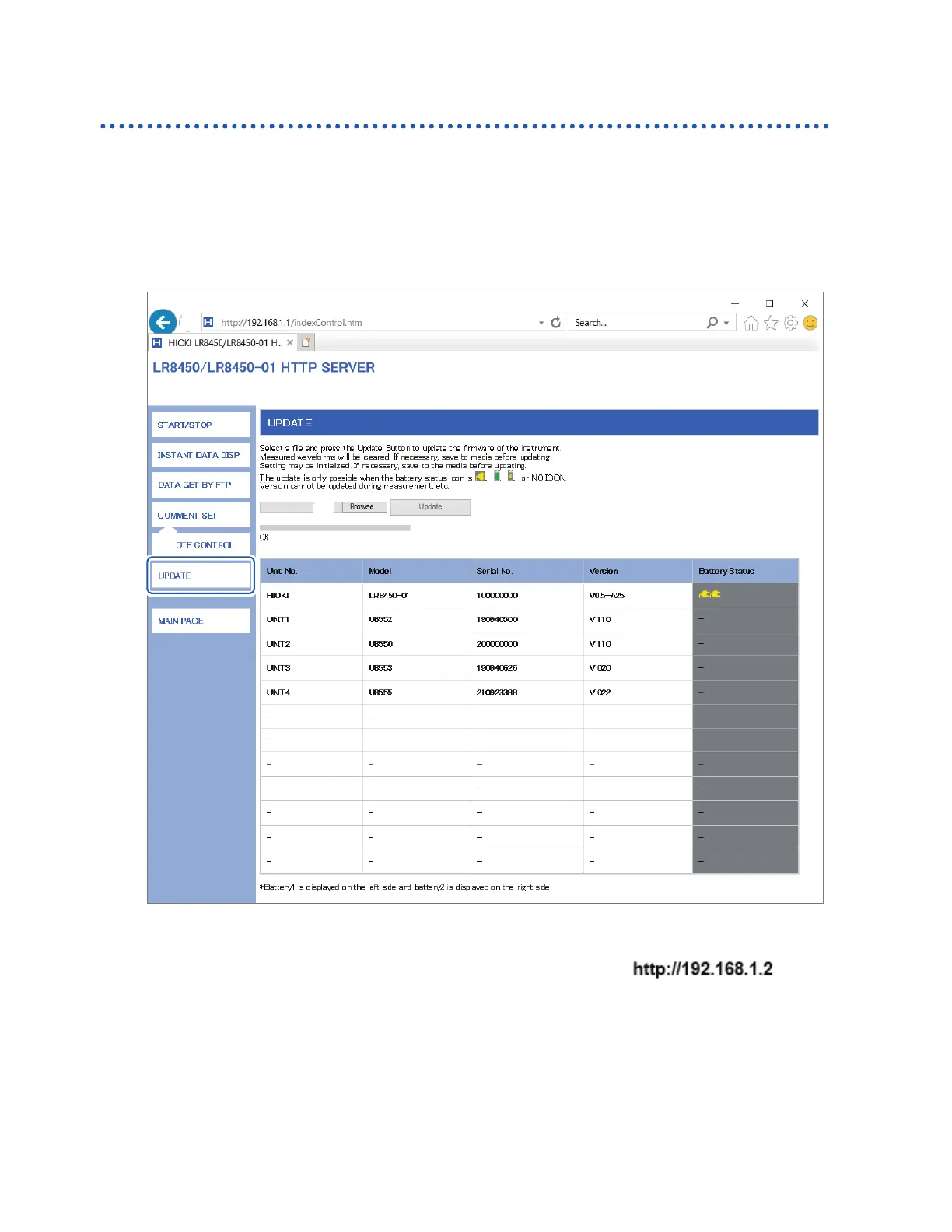

Launch Internet Explorer
®
on the computer.
2
Enter the instrument’s address into the address bar (for example, ).
3
Click [UPDATE].
4
Click [Browse...]. Select the update les you downloaded (The .UPG le and .PRG le is
used for the instrument and the modules, respectively).
5
Click [Update].
Executing the update of the instrument will automatically perform a restart, interrupting
communications.
For more information about cautions and an after-update checklist, see the procedure.
HIOKI LR8450A964-03
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Hioki MEMORY HiLOGGER LR8450 Specifications

General

Storage Media	SD card (up to 32 GB)
Measurement Types	Voltage, Temperature, Resistance, Strain, Pulse, Logic
Sampling Rate	1 ms to 1 hour
Interface	LAN, USB, SD card slot
Power Supply	100 to 240 V AC, 12 V DC
Resolution	16-bit
Voltage Range	±10 mV
