56

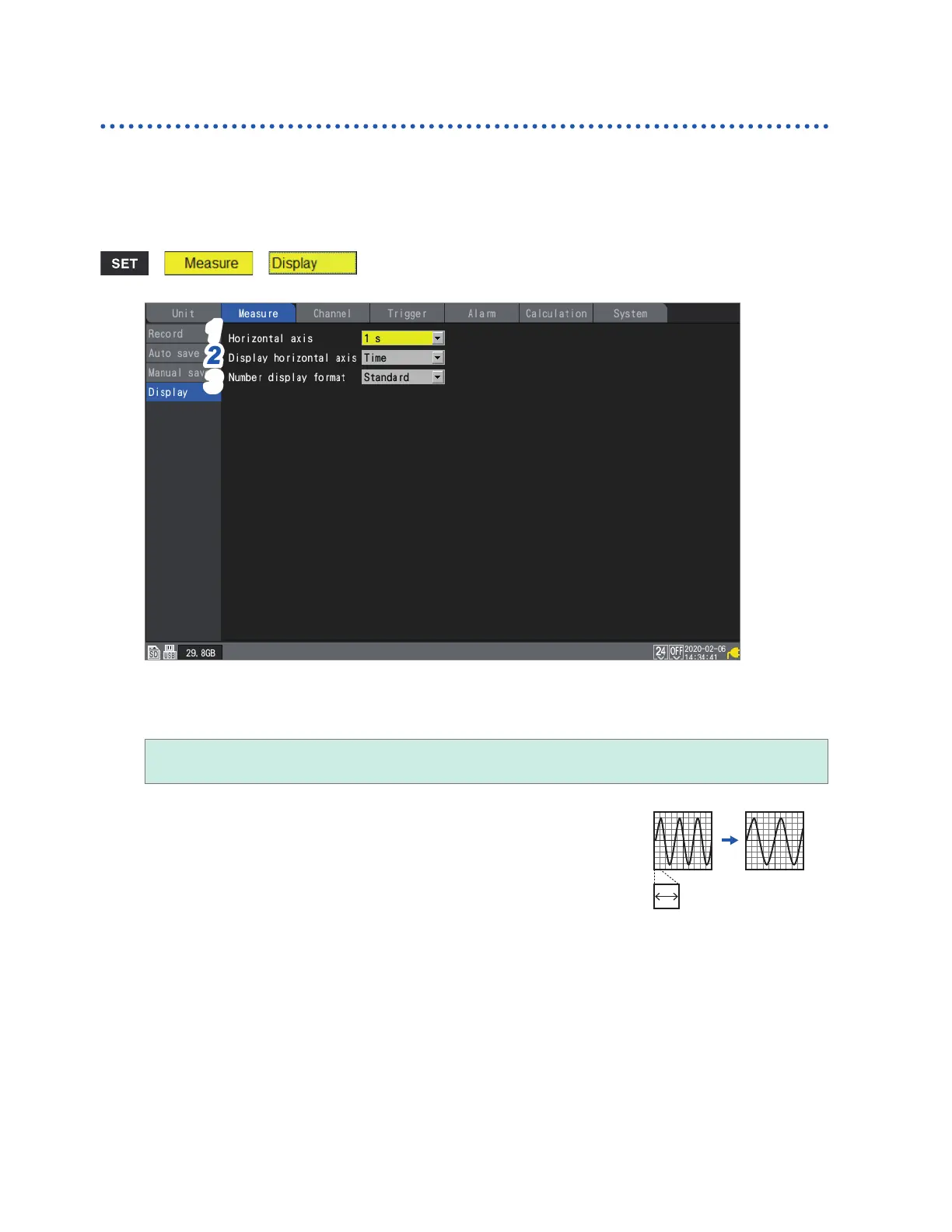

Conguring the Waveform Display
Other display settings
This section describes how to change the display’s zoom factor in the horizontal axis direction.
This feature allows you to view ne-grained changes by enlarging the waveform or check the
overall state by shrinking the waveform.
You can congure the horizontal axis display and set the method used to display vertical axis
values.
> >
2
3
1
1
Under [Horizontal axis], select the time per division.
You can select any time settings longer than the recording interval.
2 ms, 5 ms, 10 ms, 20 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s
, 20 s, 30 s,
1 min, 2 min, 5 min, 10 min, 20 min, 30 min, 1 h, 2 h, 5 h, 10 h, 12 h, 1 d
1 division
Setting a shorter time enlarges the waveform.
Setting a longer time shrinks the waveform.
Since the time assigned to 1 division is a display setting, the recording
interval and data refresh interval are unaected.
Restrictions during measurement
During measurement, the time per division setting has the upper limit according to the recording
interval.
• Recording interval of 1 ms to 5 ms: Settings up to 10 min. will be available.
If you start measurement after selecting a setting of 20 min. or greater, the setting will be changed
to 10 min.
• Recording interval of 10 ms to 50 ms: Settings up to 1 h will be available.
If you start measurement after selecting a setting of 2 h or greater, the setting will be changed to
1 h.
• Recording interval of 100 ms to 500 ms: Settings up to 10 h will be available.
If you start measurement after selecting a setting of 12 h or greater, the setting will be changed to
10 h.
