Hioki MEMORY HiLOGGER LR8450 User Manual

126
CAN Trigger
2.5 CAN Trigger
This section describes how to select CAN channels for trigger conditions. Up to 100 channels can
be specied.
> >

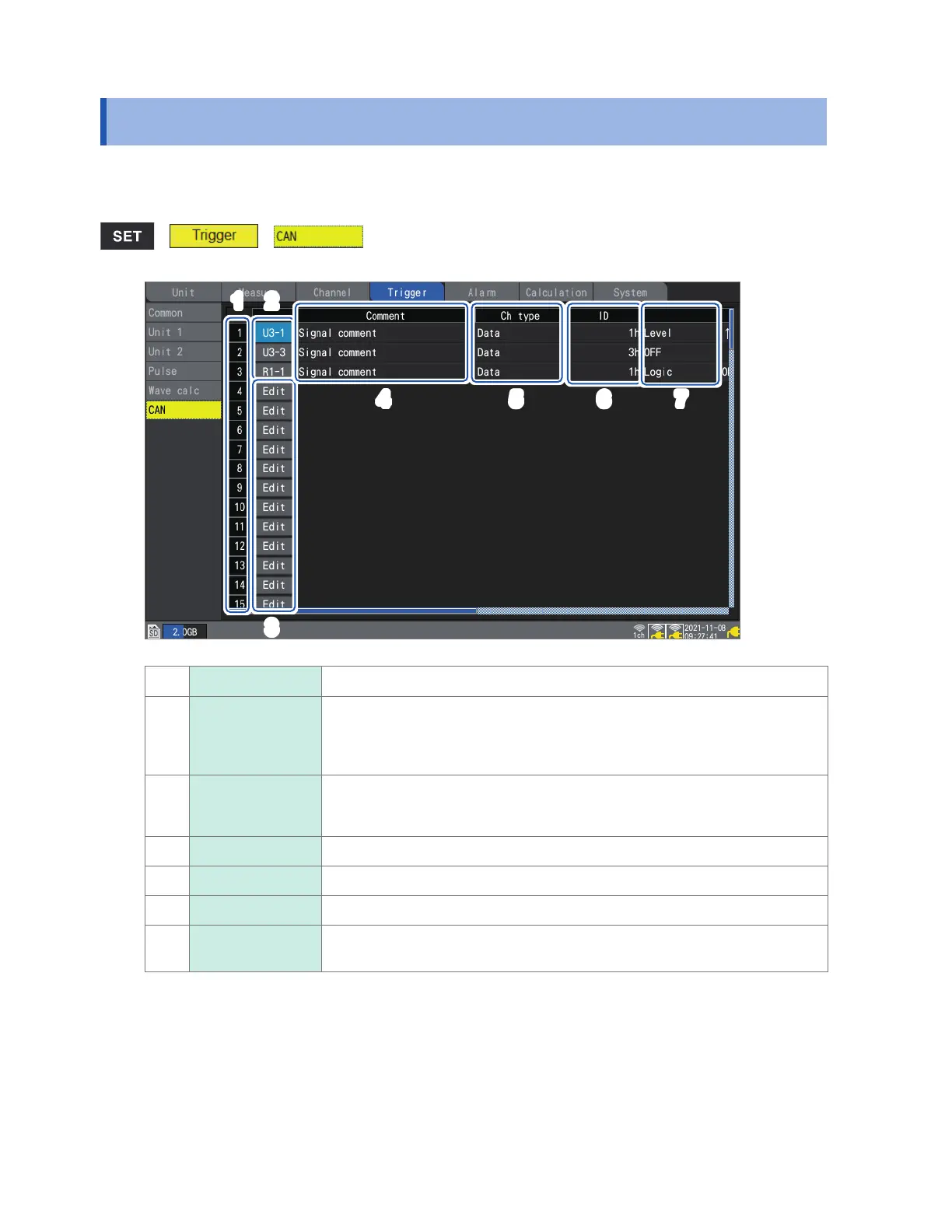

CAN trigger list screen
1
1
3
3
2
2
4
4
5
5
6
6
7
7
1
1
1 to 100 100 trigger conditions
2
2
Un-m
Rn-m
(n = 1, 2, . . .), (m = 1, 2, . . .)
Displays the CAN Unit numbers and channel numbers that are currently
congured.
Pressing the ENTER key will open the “Individual settings” window.
3
3
Edit Indicates that the CAN channel is not selected.
Pressing the ENTER key will open the “Individual settings” window.
See “CAN trigger individual settings window (Level, Window)” (p. 127).
4
4
Comment Displays the CAN channel’s comment.
5
5
Ch type Displays the CAN channel’s type.
6
6
ID Displays the CAN channel’s ID.
7
7
Start trigger
Stop trigger
Displays the trigger conditions that have been set with the settings dialog box.
