Performing Numerical Calculations
Numerical calculation formulas

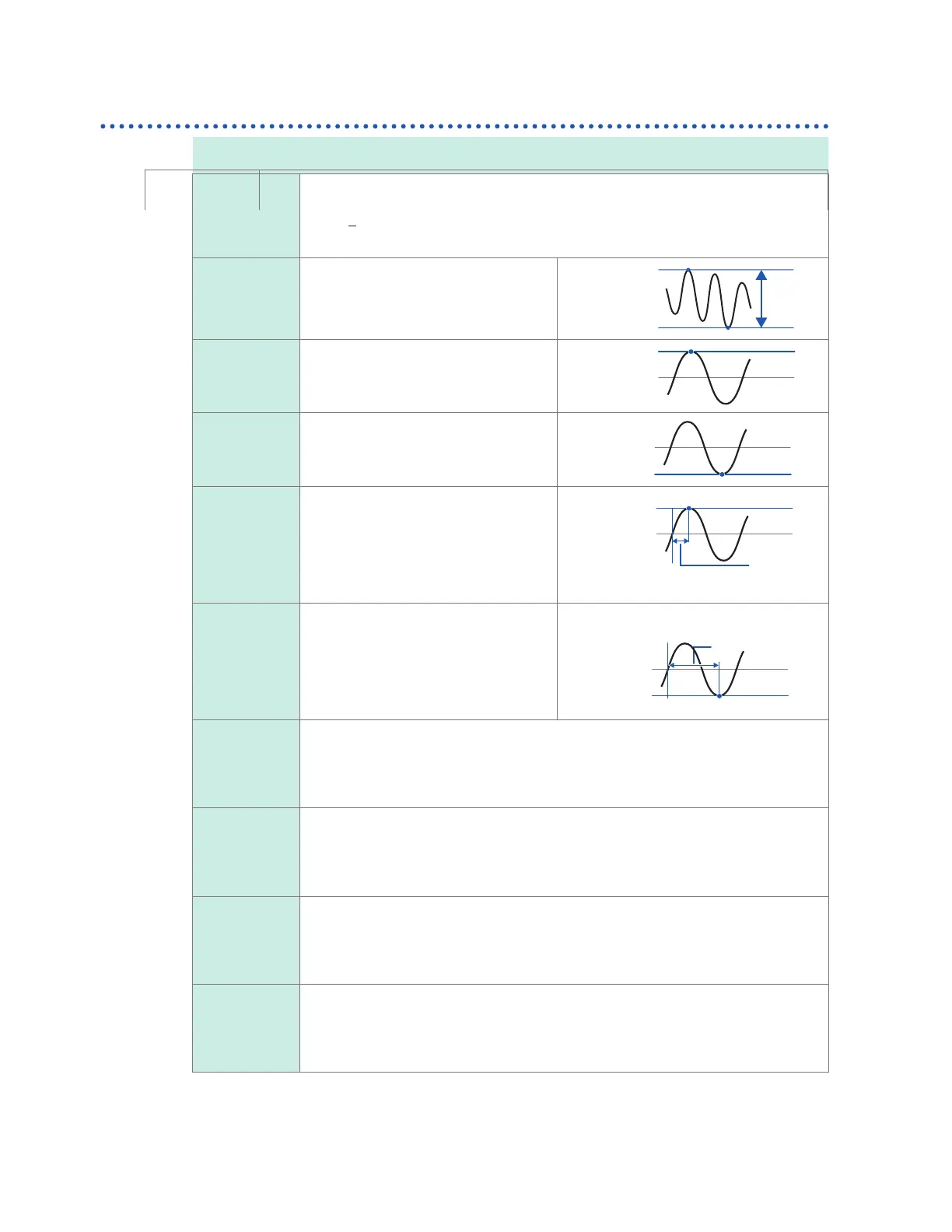

The following table provides a detailed description of each numerical calculation.
Calculation
type
Description
Average
Calculates the average value of the waveform data.
AV E
: Average value
n
:
Number of data points
di
:
i
th data point for channel
 





P-P
Calculates the value between the
maximum value and the minimum value
(peak-to-peak value).
Maximum value
P-P
value
Minimum value
Maximum
Calculates the maximum value of the
waveform data.
Maximum value
Minimum
Calculates the minimum value of the
waveform data.
Minimum value
Time to max
Calculates how long (s) it took for the
waveform to reach the maximum value
from the start of recording.*
If the maximum value occurs at 2 or more
points, the rst time the waveform targeted
by the calculation reaches the maximum
value is used to determine this value.
Maximum value
Time to
maximum
value
Time to min
Calculates how long (s) it took for the
waveform to reach the minimum value
from the start of recording.*
If the minimum value occurs at 2 or more
points, the rst time the waveform targeted
by the calculation reaches the minimum
value is used to determine this value.
Minimum value
Time to minimum
value
Aggregation
(Total)
Calculates the integrated value for the measurement data.
SUM
: Integrated value
n
: Total number of data points
di
:
i
th data point for channel
di
SUM =
∑
i = 1
n
Aggregation
(Positive)
Calculates the integrated value for positive measurement data.
, di
> 0
SUM
: Integrated value
n
: Total number of data points
di
:
i
th data point for channel
di
SUM =
∑
i = 1
n
Aggregation
(Negative)
Calculates the integrated value for negative measurement data.
, di
< 0
SUM
: Integrated value
n
: Total number of data points
di
:
i
th data point for channel
di
SUM =
∑
i = 1
n
Aggregation
(ABS)
Calculates the integrated value for the absolute value of measurement data.
SUM
: Integrated value
n
: Total number of data points
di
:
i
th data point for channel
|di|
SUM =
∑
i = 1
n
*: Calculates the time from the trigger point when the trigger is used.
