X-Y Compositing
Performing X-Y compositing during measurement
2
2
1
Enable the X-Y compositing function on the settings screen and congure the settings as
necessary (p. 98).
2

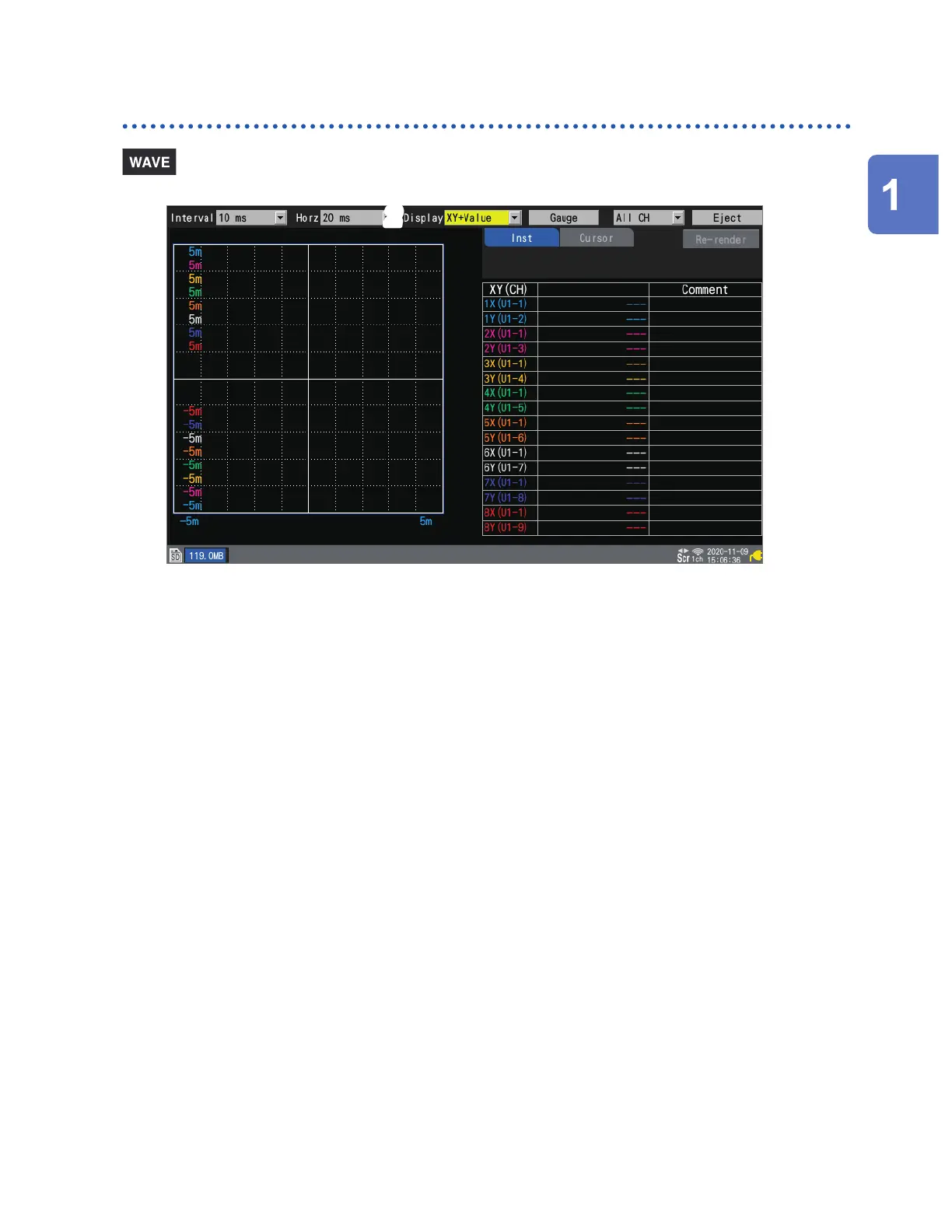

Under [Display], set the display to [XY+Set] or [XY+Value].
3
Start measurement.
Settings and Operation
